High Definition ROHS PSE Outdoor Fixed LED Display With rear Service
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE/Rohs/PSE |
| Model Number: | Outdoor cabinet display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | LED Advertising Screen | Model: | P10/P5 |
|---|---|---|---|
| Cabinet Material: | Iron Cabinet | Cabinet Size: | 960*960mm, Acceptable Customized |
| Brightness: | P10: 6500mcd/㎡ P5: 5000mcd/㎡ | IP Grade: | IP65 |
| Control Mode: | WIFI Connection | Life Span: | 100000hours |
| High Light: | ROHS PSE Outdoor Fixed LED Display,P10RGB Outdoor LED Signage,ROHS PSE High Definition LED Display |
||
Product Description
High Definition ROHS PSE Outdoor Fixed LED Display With rear Service
High Definition Outdoor LED Signage With rear Service P10 RGB Advertising Screen
LED displays are widely used in outdoor scenes. Compared with LCD screens, LED displays have the characteristics of high brightness, flexible size, low price and long service life. At present, LED displays are widely used in outdoor advertising, hotel media, wedding backgrounds, schools and other places.
Features of LED Display:
1: Block design, convenient for repair.
2: SMD3535 LED Light, long life span and stable quality
3: Rear maintenance Iron cabinet, optional for aluminum cabinet, suitable for pole installation, wall installation.
4: IP65 waterproof and dustproof, ensure the panel's working in any severe environment
5: Stable and reliable system, with good after-sale service
Specs for P10 / P5 LED Signs:
| Product name: | Outdoor LED Advertising Screen | |
| Model: | P10RGB | P5RGB |
| Pixel Pitch: | 10mm | 5mm |
| Pixel Density: | 10000dots/㎡ | 40000dots/㎡ |
| LED Module size: | 320*160mm | 320*160mm |
| Module resolution: | 32*16=512dots | 64*32=2048dots |
| Cabinet size: | 960*960mm | 960*960mm |
| Cabinet resolution: | 96*96=9216dots | 192*192=36864dots |
| Scanning mode: | 1/2S | 1/8S |
| Brightness: | ≥6500cd/㎡ | ≥5000cd/㎡ |
| Power consumption: | 1200W max /㎡ | 900W max/㎡ |
| Maintenance: | Rear maintenance | Rear maintenance |
| IP Grade: | IP65 | IP65 |
| Working voltage: | AC220V / 110V | AC220V / 110V |
| Life span: | 100000hours | 100000hours |

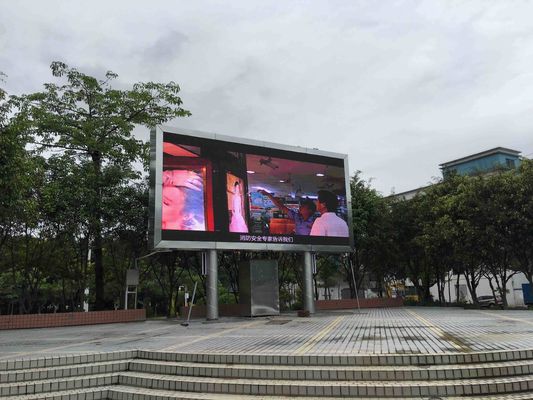

Application for outdoor advertising Screen:
