P10 RGB SMD3535 LED Digital Billboards With Aluminum Cabinet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P10RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500PCS/month |
|
Detail Information |
|||
| Product Name: | Outdoor LED Display | Pixel Pitch: | 10mm |
|---|---|---|---|
| LED Lights: | SMD3535 | Scanning Mode: | 1/2 |
| Brightness: | 6500mcd/㎡ | Module Size: | 160*320mm |
| Cabinet Size: | 960*960mm | Power Consumption: | 800W/㎡ |
| Working Voltage: | 110V / 220V | Cabinet Desgin: | Back Maintenance |
| High Light: | SMD3535 LED Digital Billboards,P10 RGB LED Digital Billboards,SMD3535 LED Screen Billboard |
||
Product Description
Digital Billboards P10 RGB Outdoor fixed led display 960x960mm aluminum cabinet
Outdoor advertising panel, P10RGB LED Display would be the classic solutions due to the high brightness and economic price. SMD3535 LED provide 6500mcd brightness for the LED Board, it 's bright enough even under sunshine light. IP65 Design cabinet is waterproof under raining day.
Features of LED Postal:
1: High brightness: 6500mcd/㎡, SMD3535 Kinglight LED, Nation star LED Light
2: IP65 Waterproof with aluminum cabinet / iron cabinet
3: Certified power supply: CE/ PSE/ ROHS/ UL certified.
4: one year warranty and 7*24hours service.
5: welcome for Customized size

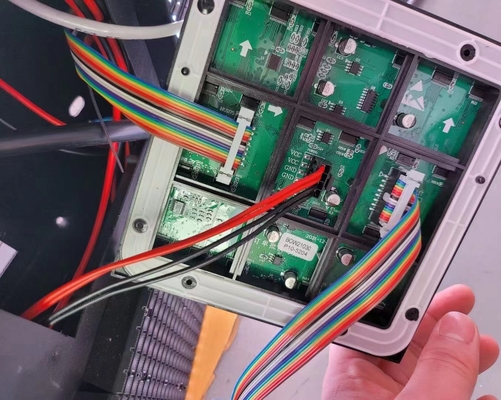

Specs of P10 LED Module:
| Product name: | LED Display Module |
| Model: | P10RGB |
| Pixel Pitch: | 10mm |
| LED Light: | SMD3535 |
| Module size: | 160*320mm |
| Module resolution: | 16*32=512dots |
| Standard Cabinet size: | 960*960mm |
| Cabinet Resolution: | 96*96=9216dots |
| Scanning Mode: | 1/2 |
| Brightness: | ≥6500mcd/㎡ |
| Weight: |
65kgs/㎡ for Iron cabinet 45kgs/㎡ for Aluminum cabinet |
| Viewing distance: | 10-100m |
| Connection mode: | WIFI, RJ45 cable, USB |
| Refresh Rate: | ≥1920 |
Want to Know more details about this product
