P2.5 High Resolution LED Screen , Ultra Slim Wedding Led Background
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE,ROHS,PSE,UL |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pixel Pitch: | 1.25/1.875/2/2.5 | Color: | RGB COLOR |
|---|---|---|---|
| Drive Mode: | 1/32 | Module Weight: | 0.48 |
| LED Chip: | SMD2121 | Brightness: | 1200cd |
| Display Function: | Animation/Graphics/Video | Life Span: | 100000 Hours |
| High Light: | P2.5 High Resolution LED Screen,P2.5 Wedding Led Background,Ultra Slim Wedding Led Background |
||
Product Description
P2.5 Ultra Slim Display Panel Indoor Stage Backdrop Wedding Background Led Screen
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board .
Module Specification:
| Dimensions(WxH) | 160x160mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 2.5 | Pixel Density | 147456 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||

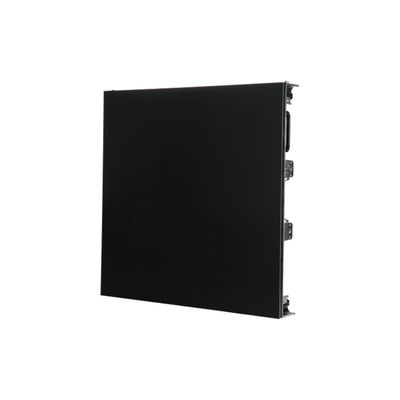

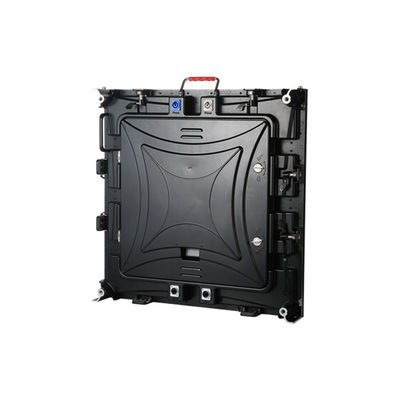

Cabinet Specification:
| Dimensions (WxH) | 480mm x 480mm | Module Quantity | 9 |
| Physical Resolution(WxH) | 192 x192 dots | Physical Pixels (Total) | 36864 |
| Weight/Cabinet | 8KG | Material | Die-Castiing aluminum |
|
|||
LED Display Parameter:
| Pixelpitch(mm) | P2.5 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 147456 |
| Module size LxH mm | 160*160mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 480*480mm |
| Cabinet resolution | 192*192dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Product Description
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures
the best viewing angle.
2.Constant current chip driving reduces the power consumption and prompts the stability, the simple modular design is low cost and easy to maintain.
3.Can undertake single point, single lamp maintenance,the cost is low.
4.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module
more attractive.
5.Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.
6.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close-range viewing.
7.Temperature: −20℃~+50℃.
Humidity:≤90%.MTBF:≥10,000 hours.Lifespan:≥50,000 hours.Defective Dot Rate: <0.0002.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
