Indoor IP43 P2 5 Led Display 3-8m Viewing Distance With 24 Month Warranty
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE,ROHS,PSE,UL |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Color: | Full Color | Pixel Pitch: | P2.5 |
|---|---|---|---|
| Warranty: | 24 Month | Application: | Indoor |
| Product Name: | Led Display Panel | Module Size: | 320X160mm |
| IP Rating: | IP40/IP43 | Average Power: | ≤180W/m2 |
| High Light: | IP43 p2 5 led display,24 Month Warranty 5 Led Display,SMD2121 High Resolution LED Screen |
||
Product Description
China Professional Manufacture Cheap Board Display Indoor P2.5 Led Display Screens
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board .
Module Specification:
| Dimensions(WxH) | 160x160mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 2.5 | Pixel Density | 147456 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||

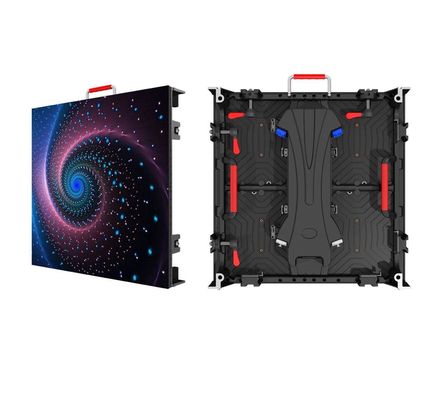

Cabinet Specification:
| Dimensions (WxH) | 480mm x 480mm | Module Quantity | 9 |
| Physical Resolution(WxH) | 192 x192 dots | Physical Pixels (Total) | 36864 |
| Weight/Cabinet | 8KG | Material | Die-Castiing aluminum |
|
|||
LED Display Parameter:
| Pixelpitch(mm) | P2.5 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 147456 |
| Module size LxH mm | 160*160mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 480*480mm |
| Cabinet resolution | 192*192dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Package:
Our service:
1.Providing professional technology supporting
2.Instructing installation and remote control
3.Trainning workers for free
4.Providing free procurement services
5.Customer first is our service tenet
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
