480x480mm High Definition LED Screen Die Casting Aluminum
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE,ROHS,PSE,UL |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Color: | Full Color RGB | Pixel Pitch: | P2.5 |
|---|---|---|---|
| Cabinet Size: | 480x480mm | Power Supply: | Meanwell |
| Brightness: | 500-900cd/sqm | Max Power: | 140 |
| Warranty: | 2 Years | Application:: | Indoor Advertising |
| High Light: | Die Casting Aluminum High Definition LED Screen,480x480mm High Definition LED Screen,Aluminum High Definition LED Screen |
||
Product Description
Factory Price Video Wall P2.5 Indoor Front Maintenance LED Display Screen Cabinet For Indoor Advertising
Our Goal is to provide our customers with the best LED solutions for their needs,
with many years of LED Production experiences.
Add a welcome charming modern touch to your Advertising with this high-quality Led Sign!
led advertising message signs is widely used in shopping malls, hairdressers,
beauty chain stores, restaurants, bars, parking lots,
entertainment venues ect and suitable for all kinds of indoor and outdoor commercial billboards.
Module Specification:
| Dimensions(WxH) | 160x160mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 2.5 | Pixel Density | 147456 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||
Cabinet Specification:
| Dimensions (WxH) | 480mm x 480mm | Module Quantity | 9 |
| Physical Resolution(WxH) | 192 x192 dots | Physical Pixels (Total) | 36864 |
| Weight/Cabinet | 8KG | Material | Die-Castiing aluminum |
|
|||
LED Display Parameter:
| Pixelpitch(mm) | P2.5 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 147456 |
| Module size LxH mm | 160*160mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 480*480mm |
| Cabinet resolution | 192*192dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Product Description
1.160*160mm module with hign contrast pure black led lamp, which creates a perfect uniformity of screen and a better softness of color
2.PWM constant current drive and elimination drive, avoiding ghosts phenomenon, leading to a clear vision
3. ENIG of PCB welding plate and hign-performance gold plated connector, ensuring the oxidation resistance of module
4.8000:1 hign contrast ratio and 16 bit gray scale which shows a better color reduction
5. 480*480mm hign precision die-casting aluminum cabinet with a portable frame and a more smooth screen surface
6. alternative front-service die-casting aluminum cabinet with special installation tools which is available to front installation maintenance
7.available to all kinds of installation method, causing a more convenient and more stable installation

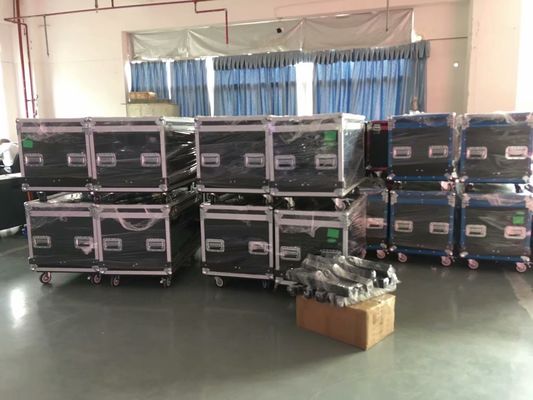

Package:
Our service:
1.Providing professional technology supporting
2.Instructing installation and remote control
3.Trainning workers for free
4.Providing free procurement services
5.Customer first is our service tenet
