• P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC
  • P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC
  • P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC
P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC

P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC

Product Details:

Place of Origin: CHINA
Brand Name: DL
Certification: CE,ROHS,PSE,UL
Model Number: P1.875

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiate
Packaging Details: flight case
Delivery Time: 5-15days
Payment Terms: T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information
Pixel Pitch: P1.875 Main Ic: ICN2153
Driving Method: 1/32 Scaning Cabinet Size: 480x480mm
Thickness: 80mm Usage: Inside
Weight Of Cabinet: 12kg Power Supply: Meanwell
Brightness: 1000cd/sqm Refresh Rate: High Refresh 3840 Hz
High Light:

P1.875 Small Pixel Pitch Led Screen

,

1 16 Scan Small Pixel Pitch Led Screen

,

MBI5124 Small Pixel Pitch Led Screen

Product Description

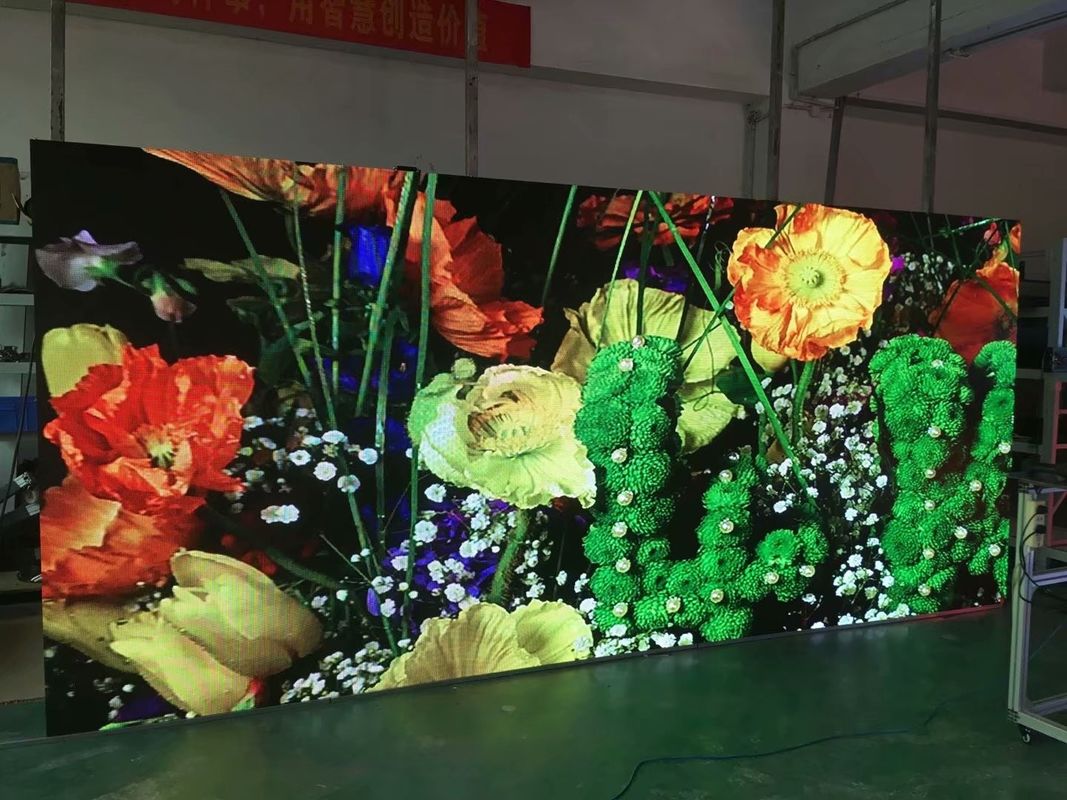

Small Pixel Pitch P1.25 P1.56 P1.875 Fixed Installation Indoor HD Led Display Screen



LED screens and has a much wider viewing angle than the full color dip lamps LED screens. It rejects the deficiencies of the traditional LED lamp outdoor display screens.



LED Display Parameter:

Pixel pitch(mm) P1.875
LED Encapsulation SMD1515
Density(dot/m2) 284444/sqm
Module size LxH mm 240*240mm
Module Resolution 128*128dots
Cabinet Size 480*480mm
Cabinet resolution 256*256dot
Viewing Distance 1.5-8m
viwe angle(H)- (V) 140°- 140°
Brightness (cd/m²) 4500
average consumption m² 450w
Max consumption m² 1500w
Driving method -25-65℃
scan mode 1/16scan
MTBF ﹥100000
Frame frequency 60Hz
input voltage 110-220V
Color temperature 1500K
IP rating IP65/IP55
Signal input format Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI



P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 0P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 1

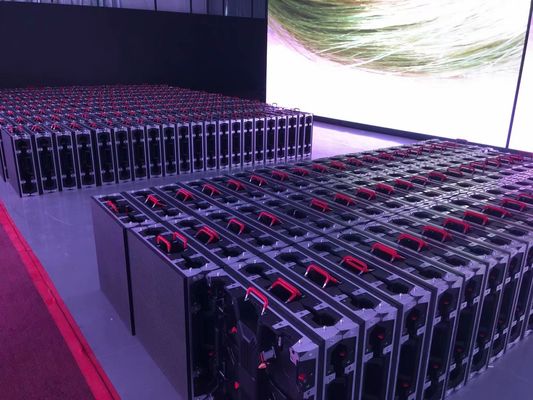

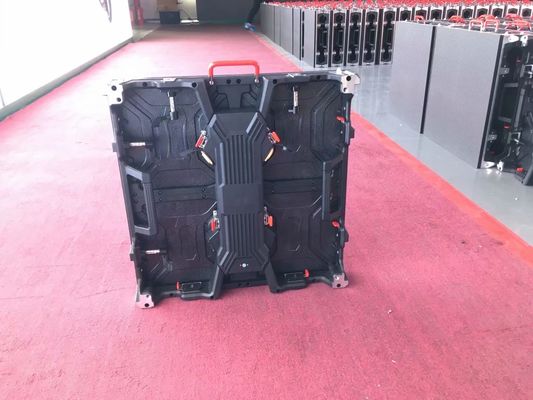

Indoor die-casting aluminum LED panel

Die-casting aluminum LED panel, the quality is stable.
Panel size is 480x480mm , each panel weighs 8kg,easy to lifting and install.
It adopt black SMD2121 LED diode, the display effect is very good.
The IC is MBI5124, high refresh.



Humanize design

There are three handle at below and side, so you can lifting the panel easily.



We add magnet on cabinet frame and module, the led module is easy to take away, save time for your maintenance.



Fast and seamless installation

New design fast lock, it is very comfortable and convenient, fast installation.



Each cabinet with 4 fast lock, seamless installation and keep smoothly.


P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 2P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 3P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 4

  • High resolution of indoor full color LED display;
  • Integrated encapsulation is blessed with higher reliability;
  • Good color mixture from far or very near distance;
  • Good color consistency transparent picture;
  • Good picture uniformity;
  • Wide viewing angle;
  • Higher contrast ratio;
  • The most economical and rational solution for 3 in 1 full color technology

Our service:

1.Providing professional technology supporting

2.Instructing installation and remote control

3.Trainning workers for free

4.Providing free procurement services

5.Customer first is our service tenet



P1.875 Small Pixel Pitch Led Screen 1 16 Scan High Refresh MBI5124 IC 5

FQA:

Q1. Can I have a sample order for the LED display?

A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.

Q2. What about the lead time?

A: Order less than 100 square meters led time to take 15 working days

Q3. Do you have any MOQ limit for LED display order?

A: Low MOQ, 1 square meter or a module checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance



Tag:

480x480 Indoor Led Video Wall

140W Indoor Led Video Wall

24 Month Warranty 5 Led Display
