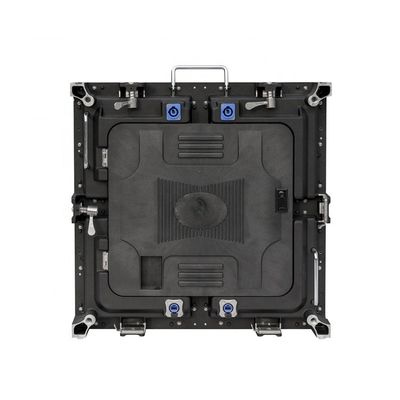

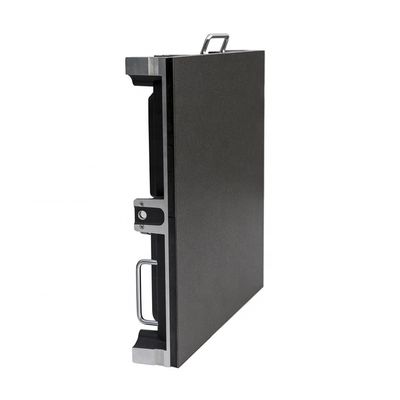

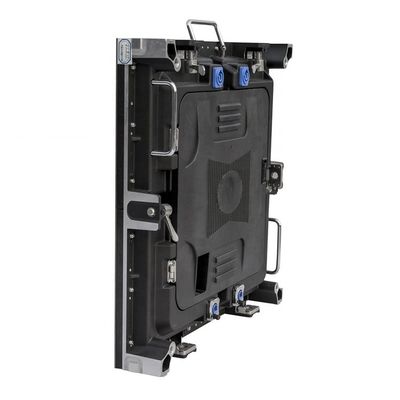

60Hz Indoor Full Color Led Display 480x480mm Kinglights LEDs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE,ROHS,FCC,PSE,UL |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Color: | RGB Color | Pixel Pitch: | 1.875 |
|---|---|---|---|
| Model: | P1.875 | LEDs: | Kinglights |
| Driving Method: | 1/32 S | Viewing Angle: | 140H,140V |
| Panel Size: | 480x480mm | Product Name: | Led Video Display Panel |
| High Light: | 60Hz Indoor Full Color Led Display,480x480mm Indoor Full Color Led Display,480x480mm kinglight led display |
||
Product Description
Full color P1.875 P2.5 LED screen price list LED screen rgb LED for screen
*Support kinglight LED encapsulation,wide viewing angle high waterproof grade.
*Low power consumption makes videos more exquisite and real.
*Different form the traditional aluminum panel,disassembly and maintenance is extremely convenient.
*Can be installed flat and curved screens with CNC technology.
*The modules are fixed by magnet and by screw for fast assembling, and no tools required for installation
*Fast assembling & disassembling
*No tools are required for installation of screen.
LED Display Parameter:
| Pixel pitch(mm) | P1.875 |
| LED Encapsulation | SMD1515 |
| Density(dot/m2) | 284444/sqm |
| Module size LxH mm | 240*240mm |
| Module Resolution | 128*128dots |
| Cabinet Size | 480*480mm |
| Cabinet resolution | 256*256dot |
| Viewing Distance | 1.5-8m |
| viwe angle(H)- (V) | 140°- 140° |
| Brightness (cd/m²) | 4500 |
| average consumption m² | 450w |
| Max consumption m² | 1500w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | ﹥100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| Color temperature | 1500K |
| IP rating | IP65/IP55 |
| Signal input format | Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Testing the led 72Hours before shipment
Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.
It delivers an image which is super subtle and without getting tired after a longtime watchin.
Package:
Flight Case/Plywood Case:6 panels or 8 panels in 1case.
Standard Fight case or Plywood case packing,depends on you.
Payment terms: T/T in advance, 30% deposit and the balance 70% will be paid before shipment.
Warranty time:2 years, offer the free spare parts(module & power supply) in advance. After guarantee term, still supply spare parts with charging only materials cost.
