P4 Outdoor Fixed LED Display Aluminum / Steel Cabinet For Plaza
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P4RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 4mm | Module Size: | 128*256mm |
|---|---|---|---|
| LED Type: | SMD2525 | Scanning Mode: | 1/8 Scanning |
| Life Time: | ≥100,000 Hours | Power Consumption: | Avg.:500W/㎡ |
| Cabinet Type: | Aluminum / Steel | Input Voltage (AC): | 220~240V/AC(±10%) Or 110V /AC |
| High Light: | P4 Outdoor Fixed LED Display,Steel Cabinet Outdoor Fixed LED Display,Steel Cabinet p4 outdoor led display |
||
Product Description

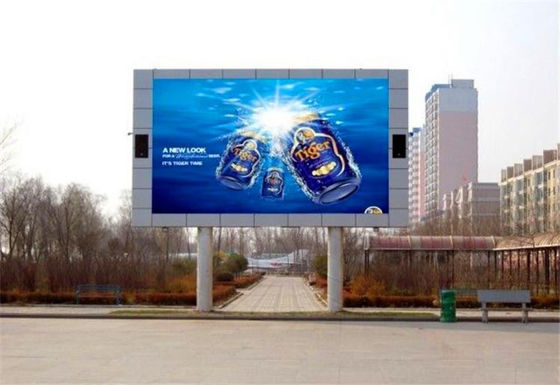

Outdoor P4RGB Video Showing LED Advertising Display for Plaza with adjustable brightness
P4RGB LED Module with high pixel density up to 62500dots/㎡, it's very clear even seen from small distance. Standard
cabinet size could be 512*512mm, 1024*1024mm, etc, and it could be customized also to meet all size requirements.
If the installation size is not too big, and need very clear effect, P4RGB LED display would be your perfect solution.
Features:
1: SMD2525 Kinglight LED, Nationalstar LED, to make sure stable quality and high brightness.
2: Programmable software by phone app, enthernet cable, optional for 4G solution.
3: Aluinum cabinet and steel cabinet, all can be acceptable.
4: Energy saving LED and long lifetime UL certified Meanwell power supply.
5: 2years warranty and lifetime technical support.
6: 7*24hours service on line.
Product Specs:
| Pixel Pitch: | 4mm |
| Pixel Density: | 62500dots/㎡ |
| Module Size: | 128*256mm |
| Module Resolution: | 32*64dots |
| Cabinet Size: |
512*512mm, 768*768mm, 1024*1024mm etc (depends on display size) |
| Cabinet Type: | Aluminum / steel |
| Scanning Mode: | 1/8 scanning |
| Brightness: | ≥5000mcd/square meter |
| Power consumption: | Avg.:500W/㎡, Max: 1200W/㎡ |
| Lifte Span Time: | ≥100000hours |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Interface: | Standard Ethernet |
| Video input(w/video processor): | DVI, HDMI, PAL/NTSC/SECAM;S-Video;VGA;Composite etc. |
| Transmission distance: | Sychronous system: Basic internet cable ＜100m, Asychronous System: <300m, ( Fiber Optional) |
| Input power frequency: | 50/ 60Hz |
FAQ:
A1: What's meaning for the "4, 5, 6" in P4, P5, P6 LED Module?
Q1: The numbers after "P" is the distance between 2LEDs, it means 4mm, 5mm, 6mm and so on for other pixel.
The samller distance, the outdoor led display would be more clear.
A2: Can I make one color only for RGB LED display?
Q2: RGB full color LED Display is support RGB full color with 256-65535 adjustable grey level. If need one color
only, please set in software, and the advertising display board will act your command.
A3: Is the brightness for P4 outdoor led module enough to be seen in sunshine day?
Q3: Brightness for P4 LED display is up to 5000mcd one square meter, it's enough to be seen in daytime. And with
adjustable brightness, it could be darker in night time to save energy.
A4: How many days to make one outdoor LED screen?
Q4: It takes 2-3weeks to finish one outdoor LED advertising display. Plus shipping time and customs issue so it's better to
start your project before 2monthes.
