160x320mm Outdoor Programmable Led Signs P6RGB  Easy installation

160x320mm Outdoor Programmable Led Signs P6RGB Easy installation

Product Details:

Place of Origin: CHINA
Brand Name: DL
Certification: CE/Rohs/PSE
Model Number: P6RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: wooden box / flight box
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, Credit Card, Visa
Supply Ability: 100square meters/month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 6mm Pixel Density: 27777dots/squre Meter
LED Brand: Kinglight, National Star Moduel Size: 160*320mm
Cabinet Size: 960*960mm Power Consumption: Avg: 800W/㎡
LED Type: SMD3535 Interface: Standard Ethernet
Refresh Frequency: ≥300Hz Input Voltage (AC): 220~240V/AC(±10%) Or 110V /AC
High Light:

P6RGB Outdoor Programmable Led Signs


160x320mm Outdoor Programmable Led Signs


160x320mm programmable led signs outdoor

Product Description

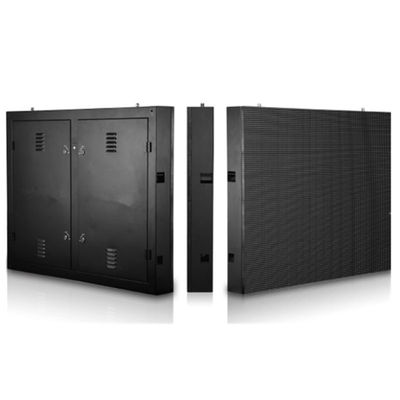

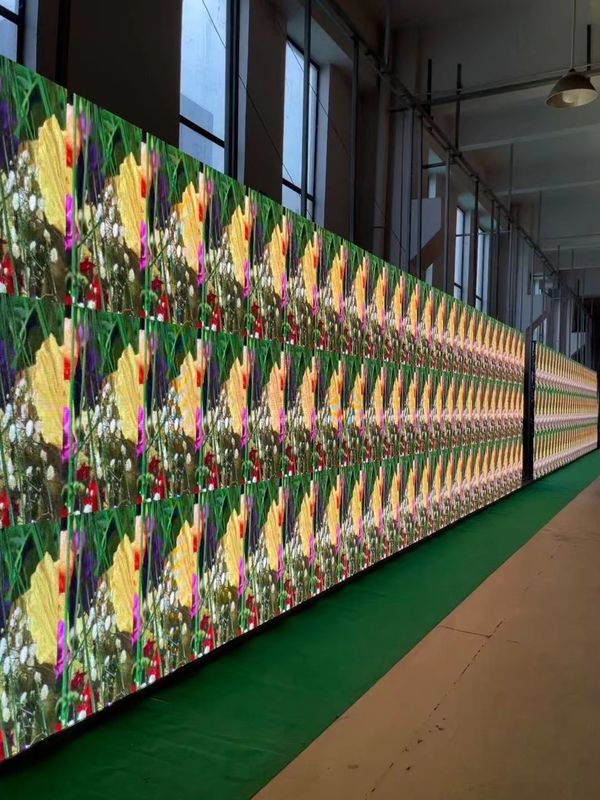

Programmable LED Advertising Screen SMD P6RGB outdoor digital display signs for Church


The P6RGB LED Panel is consist by 160*320mm module, with the same size as P10RGB. So it should be perfect

replacement for P10RGB outdoor led display without to change the installation structure. And P6RGB LED is

with more dense pixel, it would be more clear and shining than normal P10RGB outdoor led video wall. It's more

suitable for shopping center, plaza, building etc.



1: 160*320mm LED Module size, cabinet can be the same as P10RGB LED Display.

2: High brightness more than 5000mcd per square meter and vivid video showing.

3: Programmable software, support video, photo, and video

4: Qulity LED and UL certified Meanwell power supply, to make sure reliable quality.

5: Two years warranty and lifetime technical support.

6: Manual adjustable brightness (optional for automatically adjust with brightness sensor)

7: Easy installation design

8: Customzied size to meet your requirements.


Product Spec:

Pixel Pitch: 6mm
LED Type: SMD3535
Module Size: 160*320mm
Cabinet Size: 960*960mm, 1280*1280mm, 160*160mm (depends on screen size)
Scanning Mode: 1/8 Scanning
Power consumption: Avg.:800W/㎡
Recommended view distance: 5-80m
Life time: ≥100000hours
Refresh frequency: ≥300Hz
Operating Environment: Temperature: -10°C~60°C; Humidity: 10%~90%
Video input(w/video processor) DVI, HDMI, PAL/NTSC/SECAM;S-Video;VGA;Composite etc.
Interface Standard Ethernet
Input voltage (AC) 220~240V/AC(±10%) or 110V /AC
Transmission distance Sychronous system: Basic internet cable <100m, Asychronous System: <300m, ( Fiber Optional)



Q1: What's the difference for 192*192MM and 160*320mm P6RGB module display?

A1: They are different in size only, other characters are the same. The standard size for P6RGB module is

192*192mm, and nowadays to meet economical needs and replacement for P10RGB LED, the 160*320mm

P6RGB LED Display is getting popular also.


Q2: Does the LED Display support time and video at the same time?

A2: Yeah, it can be reachable, just need to set in software and make two showing area, one for time, one for

video showing. Then the outdoor P6RGB LED advertising screen will show time + video together.


Q3: Does the LED Scrolling sign with time on /off function?

A3: All our LED Moving display is with time on / off function, it can set from clock to clock showing, and from date

to date showing also.


Q4: Any after-sale service for your Outdoor LED Screen?

A4: We have a strong customer service team, provide you 7x24hours support.

For software problem, we will assist you by remote like teamviewer, anydesk.

If firmware problem, shall send you video to do repairing.
