SMD P6 RGB Full Color LED Signs Outdoor 1 8 Scanning For Advertising

SMD P6 RGB Full Color LED Signs Outdoor 1 8 Scanning For Advertising

Product Details:

Place of Origin: CHINA
Brand Name: DL
Certification: CE/Rohs/PSE
Model Number: P6RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: wooden box / flight box
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, Credit Card, Visa
Supply Ability: 100square meters/month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 6mm Pixel Density: 27777dots/squre Meter
Module Size: 192*192mm Module Resolution: 32*32dots
Recommended View Distance: 5 - 80m Driving Method: 1/8 Scanning
Refresh Frequency: ≥300Hz Power Consumption: ≥800W/square Meter
Operating Environment: Temperature: -10°C~60°C; Humidity: 10%~90% Input Voltage (AC): 220~240V/AC(±10%) Or 110V /AC
High Light:

P6 RGB Full Color LED Signs Outdoor


SMD P6 Full Color LED Signs Outdoor


1 8 Scanning outdoor full color led display

Product Description

SMD P6 RGB LED Signs with aluminum cabinet for outdoor advertising LED Screen Display


P6RGB LED module display is with high resolution compared with P10RGB, so the viewing distance would be more

near, and more clear video showing. It's with IP65 waterproof design, available to be used in outdoor advertising, sports,

industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.



1: Module surface flatness ± 0.2mm, the entire screen is with good flatness

2: High brightness LED and energy saving, UL certified Power supply Meanwell Power

3: Good quality Aluminum plastic kit or steel cabinet

4: Programmable content running text, photo, vivid video, control by WIFI, Ethernet port, optioanl for 4G

5: Easy installation cabinet design, thickness10cm-15cm

6: Cabinet size could be 768*768mm, 960*960mm, 1152*1152mm (times for 192*192mm module)

7: 2 year limited warranty and lifetime technical support

8: Adjustable 15 Level Brightness (optional for automatically brigntess adjustable)


Product Spec:

Pixel Pitch: 6mm
Pixel Density: 27777dots/square meter
Module size: 192*192mm
Module Resolution: 32*32dots
Weight: 30kgs/square meter for alunimum cabinet, 45kgs/sq for steel cabinet
Scanning Mode: 1/8 Scanning
Brightness: ≥5000mcd/square meter
Content support: Text, photo, video
Recommended view distance: 5 - 50m
Grey scale: 16bits
IP Level: IP65
Maintenance Type: Back maintenance
Refresh frequency: ≥300Hz
Power consumption: ≥800W/square meter



Q1: What's the difference for P10, P8, P6 LED Display?

A1: P10, P8, P6 LED, distance for each two LEDs is different, 10mm, 8mm, and 6mm. The smaller distance, the clearer

LED Display.


Q2: How to choose the pixel pitch for waterproof led signs?

A2: As mentioned in Q1, the smaller pixel pitch, the clearer LED Screen, and the more expensive price also. If viewing

distance is far, and bigger screen, we can use bigger pixel pitch LED Module. Or better to use small one to make sure

video quality.


Q3: If photo for installation area has been provided, can you draw the installation structure for client?

A3: Yeah, the installationstructure would be provided if needed (extra charge)


Q4: How long to make one P6RGB LED outdoor digital screens.

A4: Lead time for one set advertising led display would be around 2-3weeks, it cost around 10-14days to make steel

cabinet, and few days to assemble and aging. If any schedule to install one outdoor LED Screen, please reserve enough

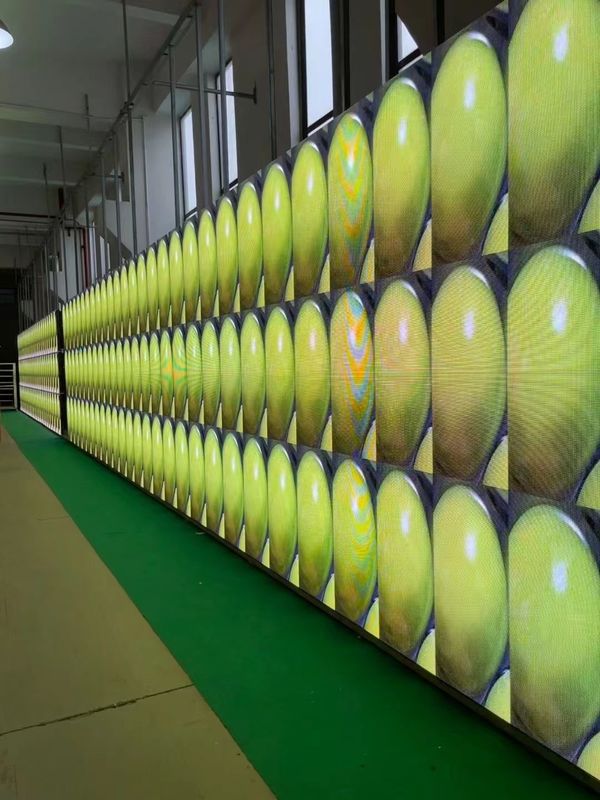

SMD P6 RGB Full Color LED Signs Outdoor 1 8 Scanning For Advertising 0

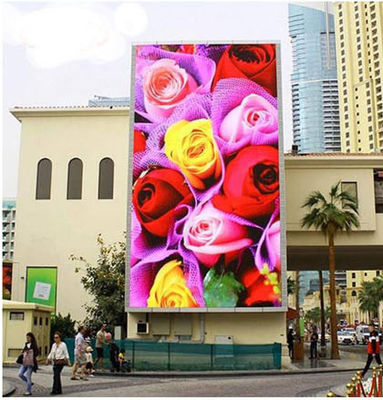

SMD P6 RGB Full Color LED Signs Outdoor 1 8 Scanning For Advertising 1
