High Brightness P8 Outdoor Fixed LED Display 1/4 Scanning
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P8RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Pixel Density: | 15625dots/square Meter |
|---|---|---|---|
| Module Size: | 128*256mm | Cabinet Size: | 1280*1280mm |
| Power Consumption: | Avg.:600W/㎡ | Brightness: | ≥6000mcd/square Meter |
| Driving Method: | 1/4 Scanning | Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Interface: | Standard Ethernet | Input Voltage (AC): | 220~240V/AC(±10%) Or 110V /AC |
| High Light: | P8 Outdoor Fixed LED Display,1 4 Scanning Outdoor Fixed LED Display,1 4 Scanning high brightness led display |
||
Product Description
Customized P8 RGB Outdoor fixed LED Screen display 1/4 Scanning with hight brightness

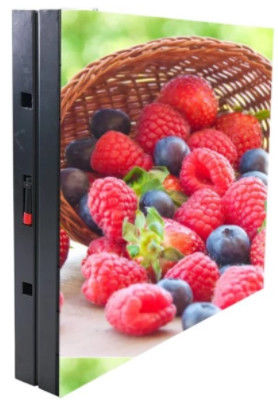

P8RGB LED Display is combined by standard 128*256mm modules and back door steel cabinet. It's IP65 waterproof
with 6000mcd brightness, can be installed in outdoor and visible in sunshine day. It adopts physical and virtual pixel
technology which makes the picture more clear and vivid, no flicker and blind dots. That would be perfect solution
for your outdoor advertising.
Features:
1: Module size: 128*256mm, cabinet size could be 1280*1280mm, 1024*1024mm (or other size, depends on LED Size)
2: Steel cabinet with back door, back maintanence.
3: SMD3535 LED, high brightness up to 6000mcd/square meter
4: Manual adjustable brightness (optional for automatically adjust with brightness sensor)
5: Programmble software, support world language, support text, photos and video
6: POE WIFI to make longer wireless transmission, up to 200m in empty area.
7: 2 year limited warranty and lifetime technical support
Product Specs:
| Pixel Pitch: | 8mm |
| Pixel Density: | 15625dots/square meter |
| LED Type: | SMD3535 Kinglight LED, National Star LED |
| Module size: | 128*128mm |
| Cabinet size: | 1024*1024mm, 1280*1280mm or other customized size |
| Scanning Mode: | 1/4 scanning |
| IP Level: | IP65 |
| Life time: | ≥100000hours |
| Recommended view distance: | 8-100m |
| Grey scale: | 16bits |
| Power consumption: | Avg.:600W/㎡ |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Input voltage (AC): | 220~240V/AC(±10%) or 110V /AC |
FAQ:
Q1: What's size can you make? How to measure the screen size?
A1: Any size for outdoor led display panels we can provide. Contact us for your size for the installtion area, height
and width, we will calculate one size which would be near your measure size.
Q2: How to make program for waterproof led screen? Can I control the LED display from other city?
A2: Standard control for LED signs is with WIFI, USB or RJ45 Cable. If need to control from other city, have to
be program via platform, and the controller have to be with 4G module, so you can control from other city.
Q3: How to adjust brightness for outdoor advertising LED screen?
A3: Normally it has to be adjusted by software. If add with one brightness sensor, it will adjust automatically. So in
daytime, brightness will increase to make sure it's visible under sunshine. And in night time, brightness will go down
to save energy, also protect your eys. (brightness sensor is opitonal).
Q4: How to make installation for p8 outdoor led screen ?
A4: The outdoor advertising display screens is with back door cabinet. Before making insatllation, have to reserve
60-80cm space for air conditional and future repair use. Build steel structure according to your site, then use the
provided fixed iron to joint the LED Screen cabinet with others and the structure.
