P10 RGB Outdoor Fixed LED Display SMD 3535 for shopping center
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P10RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Pixel Density: | 10,000 Dots/m2 |
|---|---|---|---|
| LED Type: | SMD 3535 | Unit Module Size: | 16*32cm |
| Standard Cabinet Size: | 96*96cm (optional For Other Size) | Scanning Mode: | 1/2 Scanning |
| Brightness: | ≥6500mcd/square Meter | Viewing Angle: | 120° (horz.), 60° (vert.) |
| High Light: | P10 RGB Outdoor Fixed LED Display,SMD 3535 Outdoor Fixed LED Display,Shopping Center p10 smd outdoor led display |
||
Product Description
Video Display P10 RGB Outdoor display board with back door for fixed installation shopping center

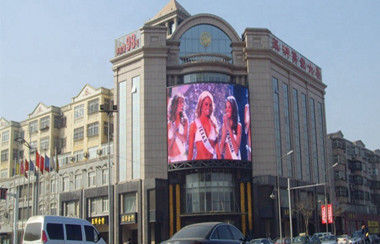

P10RGB outdoor display screen is generally installed in Plaza, Culture center etc. The digital outdoor sign adopts
physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The
LED Screen is with IP65 waterproof and dust proof cabinet design, and with super high brightness LED, so it works
well in rain and sunshine day. With lock design, it can be installation friendly as well.
Features:
1: High brightness SMD3535 or DIP546 LED lamps has been used for P10RGB Display
2: Standard steel cabinet IP65 waterproof ( optional for aluminum cabinet)
3: Programmable outdoor led billboard with POE Wifi and RJ45 connection (optional for HDMI Real time content showing)
4: Energy saving LED and long lifetime Meanwell power supply
5: Manual adjustable brightness (optional for automatically adjust with brightness sensor)
6: 2 year limited warranty and lifetime technical support
7: Standard cabinet size 960*960mm, acceptable for customized size.
Product Specs:
| Pixel Pitch: | 10mm |
| Pixel Density: | 10,000 dots/㎡ |
| Pixel Configuration: | 3in1 SMD 3535 |
| Block Dimension: | 160*320mm |
| Panel Dimension: | 960mm×960mm |
| Panel Resolution: | 96*96=9216dots |
| Optimal Viewing Distance: | 6 ~ 80m |
| Optimal Viewing Angle: | 120° (horz.), 60° (vert.) |
| Stock Temperature: | -40℃～+85℃ |
| Working Temperature: | -20℃～+50℃ |
| Max Power Consumption: | 900 W/square meter |
| Control Mode: | Asynchronisation (optinal for real time showing) |
| Scan Method: | 1/2 Scan |
| White Balance Brightness: | ≥6500cd/square meter |
| Grey Scale/ Colors: | 65536 shades/ 4.4 Trillion |
| Transmission Distance: | 0~100m for WIFI 0~15km for Enthernet cable |
FAQ:
Q1: What is the pixel pitch for outdoor LED Screen?
A1: In the listing, the pixel pitch is 10mm. We can also provide P8, P6, P5, P4, P3, P3.91 LED Display according
to clients requirements
Q2: What's the application for advertising led display?
A2: It can be wildly used in following area:
• Outdoor advertising, digital billboards, advertising in company.
• Sports led halls, fields, playgrounds.
• Airports, bus stations and railway passenger terminals (can be with 4G solution)
• Facades of shopping malls, department stores, banks and car dealerships.
• Architecture and social projects, information systems in cities.
• Show-business, concerts, festivals, motor shows and other public events.
environment.
Q3: Does the outdoor digital display signs support HD Video? Or it just support text?
A3: The LED Screen support text, photos, as well as HD Video, it can be programmed via RJ45 cable
and WIFI connection, also optional for 4G solution
