High Brightness Outdoor Programmable Led Signs 3840HZ Refresh Rate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE, ROHS, PSE |
| Model Number: | P5RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden packing |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Wester union |
| Supply Ability: | 100㎡/month |
|
Detail Information |
|||
| Product Name: | P5RGB LED Screen | Material: | LED Module |
|---|---|---|---|
| Pixel Pitch: | 5mm | LED Module Size: | 320*160mm |
| Module Resolution: | 64*32dots | Brightness: | 5000cd/㎡ |
| Power Consumption: | 800W/㎡ | Working Voltage: | AC110V/ AV220V By Switch |
| High Light: | Customized Outdoor Programmable Led Signs,3840HZ Outdoor Programmable Led Signs,P5RGB Outdoor Digital Display Board |
||
Product Description
High Brightness Outdoor Programmable Led Signs 3840HZ Refresh Rate
Features of Outdoor LED Advertising Board:
1: Modular design, free of size limitaion, customized size acceptable.
2: High brightness, up to 5000mcd for one square meter, visible in sunshine daylight time.
3: Programmable control software, wifi, usb wireless connection, free of cable transmission, convenient to update content.
4: Multi content supported: Support time, date, temperature showing, support video, text, graphics etc
5: Certified components, one year warranty.
Specs for LED Video Wall:
| Product name: | Outdor RGB LED Screen |
| Model: | P5RGB |
| Pixel Pitch: | 5mm |
| Pixel Density: | 40000dots/㎡ |
| Display size: | customized |
| Cabinet: | Aluminum / iron / die-casting aluminum cabinet |
| Scanning mode: | 1/8 |
| Brightness: | 5000cd/㎡ |
| Best viewing angle: | 120° H / V |
| Best viewing distance: | 5-50m |
| Power consumption: | Max: 800W/㎡,avg: 200W/㎡ |
| Driving IC: | SM16380, MBI5124 etc |
| Refresh rate: | ≥1920HZ, optional for 3840HZ |
| Working temperature: | -10℃~50℃ |
| Working humidity: | 10%-90%RH |
| Life span: | 100000hours |

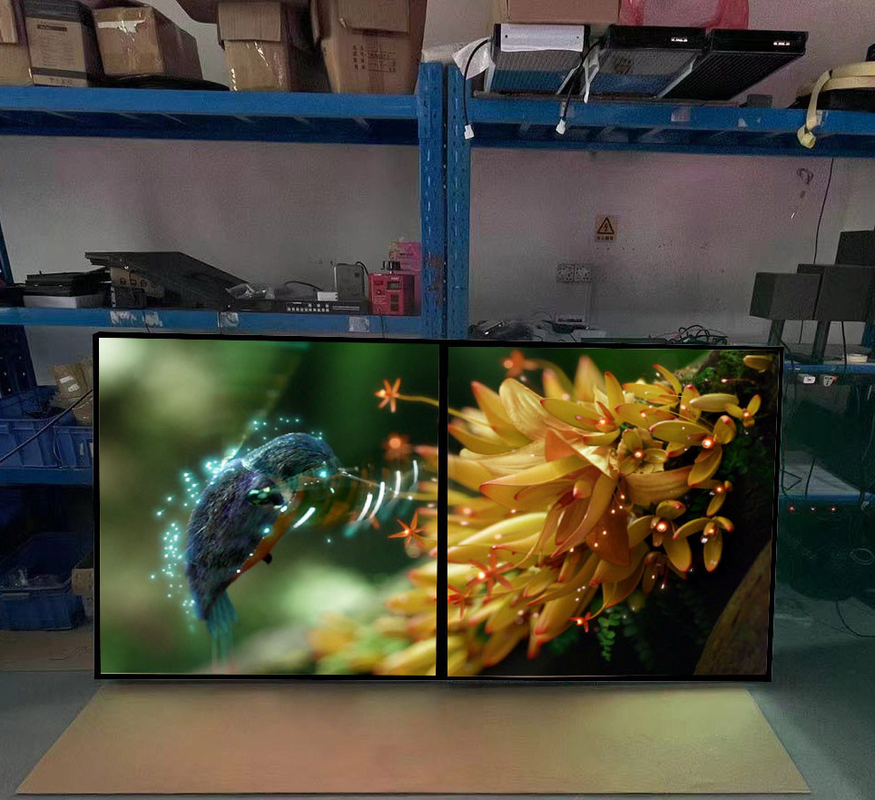

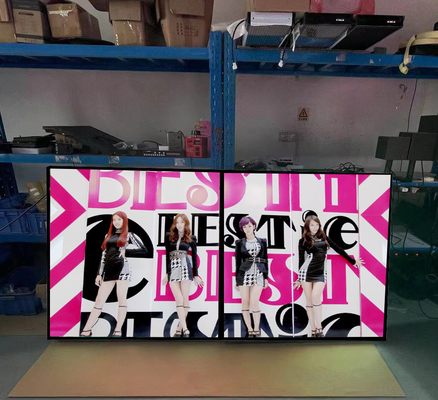

Photos for China LED Factory:
Want to Know more details about this product
