Front Service Screen Outdoor LED Advertising Display P8RGB 320X320MM Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE/Rohs/PSE |
| Model Number: | P8RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | Outdoor P8 RGB LED | Pixel Pitch: | 8mm |
|---|---|---|---|
| LED Configuration: | SMD2727 | Pixel Density: | 15625dots/㎡ |
| LED Module Size: | 320*320mm | Maintenance: | Front Maintenance With Lock |
| Brightness: | ≥6000cd/㎡ | Life Span: | 100000hours |
| High Light: | Front Service Outdoor LED Advertising Display,P8RGB Outdoor LED Advertising Display,320X320MM Front Service LED Screen |
||
Product Description
Outdoor LED Advertising Display P8RGB 320X320MM Module Front Service Screen
Features of P8 Outdoor LED Display Module for outdoor Display Sign
1: Brand LED Dots with high brightness: nationstar LED, 6000-1000nits brightness.
2: Front opening Module, save labor cost for repairing and installation cost.
3: Same module hole as P10, P6, P5, can change to other spec with same cabinet
4: Iron / aluminum cabinet, customized accepted.
5: Long life time, 100000hours
Specs for Outdoor LED Display:
| Module Specs | Pixel Pitch | 8mm |
| LED Configuration | SMD2727 | |
| Module Resolution | 40x40 | |
| Pixel Density(dots/㎡) | 15625 | |
| Module size | 320x320mm | |

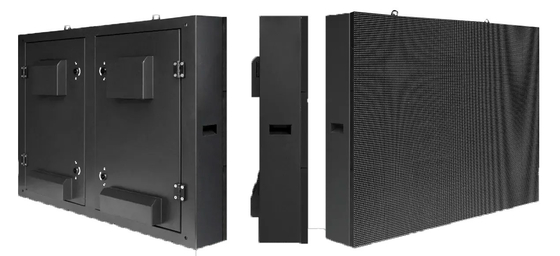

| Cabinet Specs | Cabinet Size | 960x960mm |
| Cabinet Resolution | 120x120mm | |
| Maintenance | Front Maintenance | |
| Optical Processing | Color Processing(Bit) | 14-16bit |
| Refresh Rate | ≥1920HZ | |
| Driving Method | 1/4 | |
| Brightness | 6000-10000nits | |
| Viewing Angle | 140/140 | |
| Operating Environment | Operating Temperature | 0-40° |
| IP Grade: | IP65 |

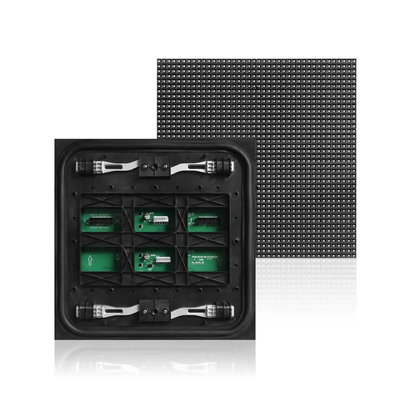

LED Module Diagram:
Front Service:
