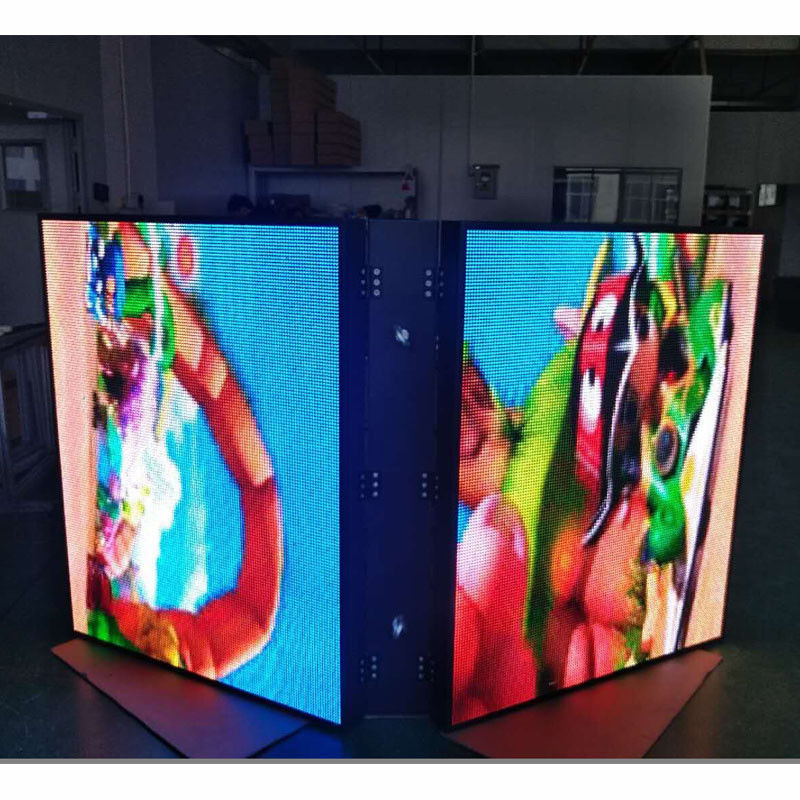

Outdoor Cabinet P5mm Front Service LED Screen Roof Video LED Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE, ROHS,UL, |
| Model Number: | P5RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | thick foam+hard carton+wooden box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Material: | Front Cabinet | Pixel Pitch: | P5mm |
|---|---|---|---|
| Color: | RGB | Application: | Outside |
| Input Voltage: | 100V~240V | Brightness: | 4500mcd/square Meter |
| Support: | Win10 | Working Life: | 100000 Hours |
| Waterproof: | IP65 | Power: | MEANWELL |
| High Light: | P5mm Front Service LED Screen,1920HZ P5 Outdoor LED Display,IP65 P5 LED Display |
||
Product Description
Outdoor Cabinet P5mm Front Service LED Screen Roof Video LED Display
Manufacturer Outdoor Front Service Open Cabinet P5 Led Display Screen China Wall Or Roof Video Led Display
Wall Or Roof Video Led Display P5 Features

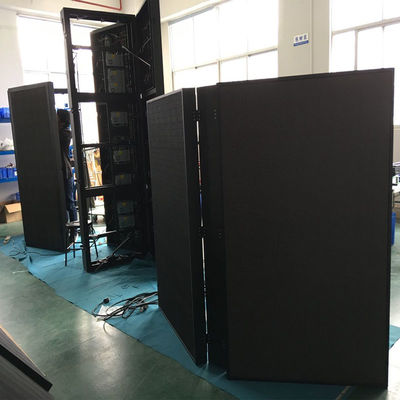

1. Front access/Front service LED Display
2. High brightness, visible even with direct sunshine
3. High water proof and dust proof, IP65 both front and rear side
4. Having good lighting accordance and no mosaic
5. Getting vivid effect within any position of the viewing range
6. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
Front Service Open Cabinet P5 Specs:
| Pixel Pitch | 5mm |
| Pixel Density | 40000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2727 |
| Module Size | 320mm x 160mm |
| Module Resolution | 64dots x 32dots |
| Drive Mode | 1/8 Scan, Constant Current |
| Brightness | >5000cd/sqm |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 1920HZ |
| Frame Rate | 120 frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 900W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Working Temperature | -20℃~+65℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10%~95% |
| Control System | Synchronous, 3G, WIFI, USB |
| Control PC | With DVI Graphic card |
| PC Display Resolution | 1280x1024 |
| Operating System | Win 98, Win2000, XP, Win7 ,Win8, Win10.etc |
| Video Signal Mode | RF,S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
Our features:
- Electronic Digital signs have been found to increase retail brand awareness by nearly 90% when compared to traditional signs
- Digital signs fulfill many roles-whether your goal is to attract new customers off the street or provide up-to-date, in-store product information
- LED Digital signs make retail spaces feel more modern and inviting
- Digital signs pay for themselves (and then some)
- Among retailers with freshly installed Digital signs, a vast majority of new customers consider those signs to be their main reason for visiting.
- The U.S. Small Business Association has endorsed programmable digital business signs content as the most profitable form of paid advertising in terms of return on investment.
- Support for different language: English, French, Portuguese, Spanish, Arabic, Russian, Chinese.
- Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
FAQ:
Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.
Q2: How about your warranty?
A:We provide 3 years' warranty.
Q3: What kind of packaging do you provide?
A: We provide foam, wooden case and carton pakage.
Q4: How can I select your product?
