SMD1921 Outdoor Led Screen For Rent 1920Hz Front And Back Maintenance
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/RoHS/FCC/PSE |
| Model Number: | 3.91 / 4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-3000/square meter |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | P3 P3.91 P4 P4.81 P5 P6 Full Color Led Display For Mobile Rental | Pixel Pitch: | 3mm 3.91mm 4mm 4.81mm 5mm 6mm |
|---|---|---|---|
| Module Size: | 250x250mm | Module Resolution: | 64*64 Dots |
| Refresh Rate: | 3840Hz | Life Span: | ≥100000 Hours |
| Screen Dimension: | Customized Size | Usage: | OUTDOOR |
| High Light: | 1920Hz Outdoor Led Screen For Rent,SMD1921 Outdoor Led Screen For Rent,1920Hz Outdoor Led Screen |
||
Product Description
Outdoor Hanging Mobile High Quality 500x500mm Full ColorAluminum Die-Casting Rental P3.91 Led Display
Outdoor Rental LED Display - Back door service
-
Pixel pitch: 3.91 mm
-
Cabinet dimension: 1000×500×75 mm
-
Pixel configuration: SMD1921
-
Brightness (cd/㎡): 3500cd/m²
-
Refresh rate: 1920Hz
-
Die-cast Aluminum cabinet
-
Frony and Back maintenance
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) |
G: WL:(520-524nm) |
B:WL:(470-472nm) |
 |
|||
Cabinet Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
| |
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Ultra lightweight, Slim design
500*500mm standard cabinet size
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.For easy transport and Portable;

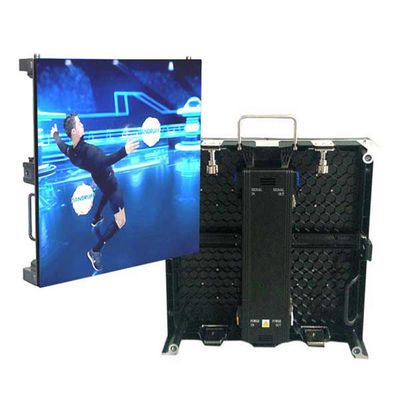

Dual Service Design
Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design.
easy installation for LED panels.

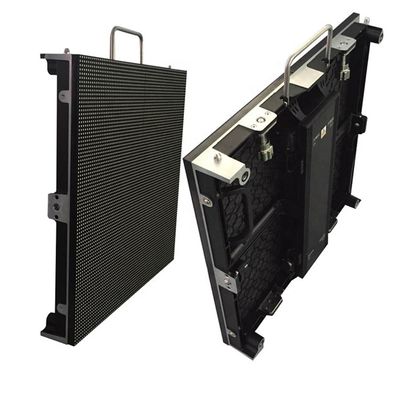

Perfect Cabinet Design With Each Part
Rental LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob,Power& signal connector, detachable power boxing, and more
Detachable Back Cover, High Waterproof
Hard Connection Design with detachable Power box and HUB Board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover
Corner Protector for LED
Front service LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use
