Waterproof P3.91 Outdoor Rental LED Screen 128x256dots High Refresh
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/RoHS/FCC/PSE |
| Model Number: | 3.91 / 4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-3000/square meter |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 3.91 | Module Size: | 250x250mm |
|---|---|---|---|
| Module Resolution: | 64*64 Dots | Cabinet Size: | 500x500mm / 500 X 1000mm |
| Resolution: | 128x128dots / 128x256dots | Brightness: | 5500cd/sqm |
| Pixels Density: | 65536points/㎡ | Refresh Rate: | 1920Hz-3840Hz |
| Warranty: | 2-3 Years | Application: | Rental Led Display |
| High Light: | P3.91 Outdoor Rental LED Screen,128x256dots Outdoor Rental LED Screen,128x256dots outdoor led display rental |
||
Product Description
Customized Outdoor Electronic P3.91 High Refresh Waterproof Rental Advertising Smd Led Display Screens Wall Board
Our Goal is to provide our customers with the best LED solutions for their needs,
with many years of LED Production experiences.
Add a welcome charming modern touch to your Advertising with this high-quality Led Sign!
led advertising message signs is widely used in shopping malls, hairdressers,
beauty chain stores, restaurants, bars, parking lots,
entertainment venues ect and suitable for all kinds of indoor and outdoor commercial billboards.

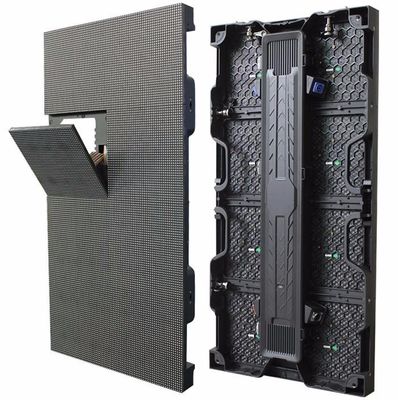

Panel Details Show
* Size: 500(W)*500(H)x76.6(T)mm
* Weight: 7.5kg
* Pixel Pitch: P2.6/P2.9/P3.9/P4.8
* Application: stage background, party, show room, exhibition, bar, church...
Maintenance
* Front and rear maintenance available.
* Faster and easier to install and disassembly.
* Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
* Die casting aluminum panel.
LED Display Seamless Splicing
* Slim and light weight,quick disassembly.
* Weight: 7.5kg/cabinet,one person can carry,saving time and effort.
* High degree of protection,high durability.
* Common good,flexible and easy to use.
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||
Cabinet Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
| |
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Panel Details Show
1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
2.It delivers an image which is super subtle and without getting tired after a longtime watching
3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
4.Front Serviceable Module allows easy Maintenance, Saving Time & Space
5.16 Bit Grey Grade Processing, the color transition will be more natural
FQA:
FQA
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
