65536 pixels Outdoor Rental LED Screen With UL Certified Power Supply
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/RoHS/FCC/PSE |
| Model Number: | 3.91 / 4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-3000/square meter |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 4.81/3.91 | Cabinet Size: | 500x500mm /500 X 1000mm |
|---|---|---|---|
| Resolution: | 128x128dots / 128x256dots | Cabinet Weight: | 10kg/pcs |
| IP Level: | IP65 | Brightness: | 5500cd/sqm |
| Pixels Density: | 65536points/㎡ | Lifespan: | 100000 Hours ( About 11years ) |
| High Light: | UL Certified Outdoor Rental LED Screen,65536 Pixels Outdoor Rental LED Screen,Aluminum Outdoor Rental LED Screen |
||
Product Description
Outdoor High Brightness Easy To Install P3.91 Rental LED Display Screen
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board .
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||

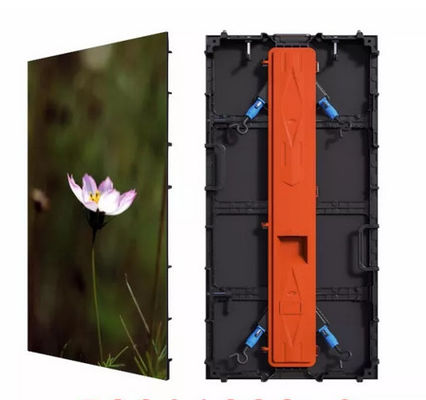

Cabinet Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
| |
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |

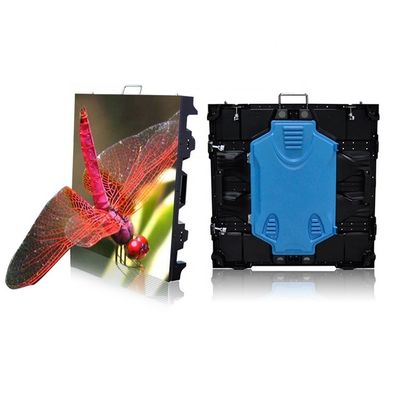

Panel Details Show
* Size: 500(W)*500(H)mm
* Weight: 7.5kg
* Pixel Pitch: P3.9/P4.8
* Application: stage background, party, show room, exhibition, bar, church...
* Slim and light weight,quick disassembly.
* Weight: 7.5kg/cabinet,one person can carry,saving time and effort.
* High degree of protection,high durability.
* Common good,flexible and easy to use
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
