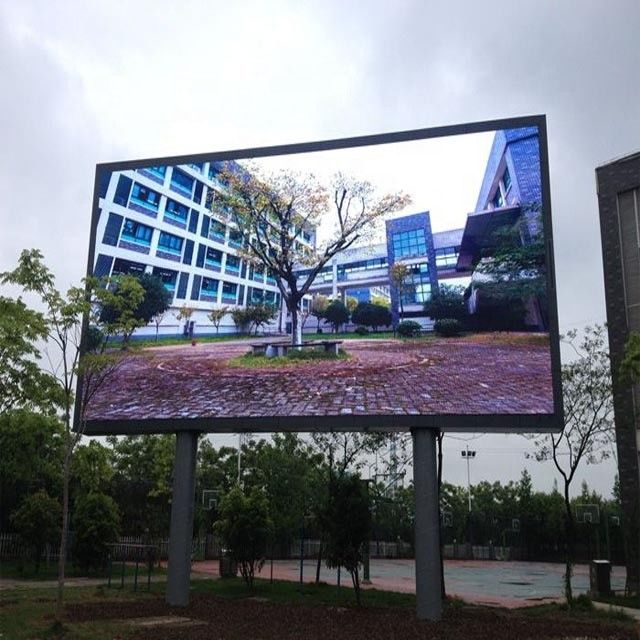

7500 CD Outdoor LED Advertising Display 140 Degree view angle
7500 CD Outdoor LED Advertising Display
,140 Degree Outdoor LED Advertising Display
,7500 CD advertising led display board
Advertising Outdoor LED Large Screen Display P10 LED Signs Waterproof

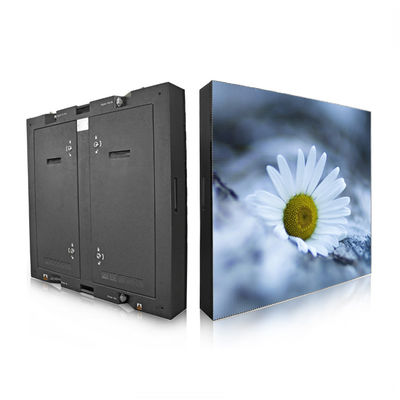

Cabinet Specification:
| Dimensions (WxH) | 960mm x960mm | Module Quantity | 18 |
| Physical Resolution(WxH) | 96 x 96 dots | Physical Pixels (Total) | 9216 |
| Weight/Cabinet | 50KG | Material | Iron/Aluminum |
LED Display Parameter
| Pixelpitch(mm) | P10 |
| LED Encapsulation | SMD3535 |
| Density(dot/m2) | 10000/sqm |
| Module size LxH mm | 320*160mm |
| Module Resolution | 32*16dot |
| Cabinet Size | 2240mm x 1440mm |
| Cabinet resolution | 224*144dot |
| Viewing Distance | 10-20m |
| viwe angle(H) - (V) | 140°- 140° |
| Brightness (cd/m²) | 6000 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/4scan |
| MTBF | ﹥100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP65/IP55 |
| Signal input format | Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Main advantages:
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
Packing:
-
