SMD3535 Outdoor LED Advertising Display , P10 Digital LED Billboard
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE, ROHS,UL,FCC,PSE |
| Model Number: | P10RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Wooden Package |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pc/Month |
|
Detail Information |
|||
| Pixel Pitch: | 10 | Scan Method: | 1/4 Scan |
|---|---|---|---|
| Module Size: | 320x160mm | Module Pixel: | 32x16 Dots |
| Cabinet Size: | 960mmx960mm | Cabinet Pixel: | 96x96 Dots |
| Cabinet Weight:: | 50KG | Cabinet Material: | Iron/Aluminum |
| High Light: | SMD3535 Outdoor LED Advertising Display,P10 Digital Led Billboard,SMD3535 Digital Led Billboard |
||
Product Description

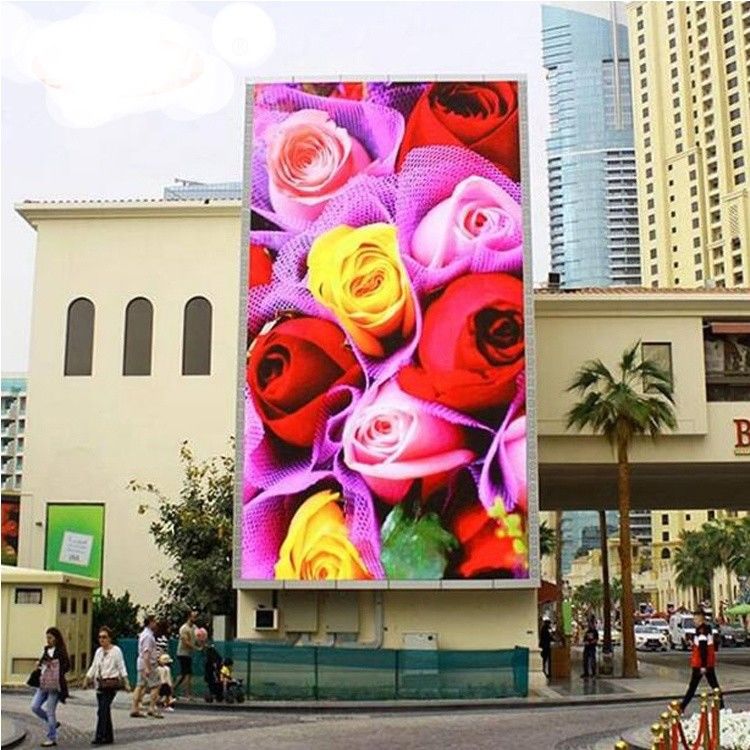

TV SMD3535 Outdoor Full Color LED Billboard P10 Waterproof Electronic Video Wall Advertising Panel Display Screen
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board.

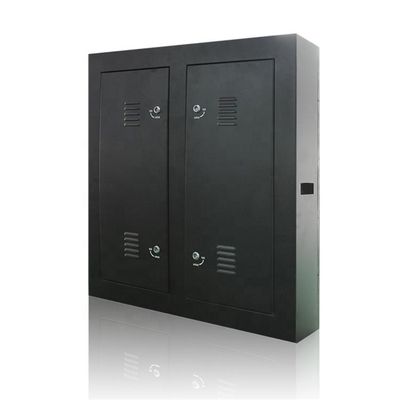

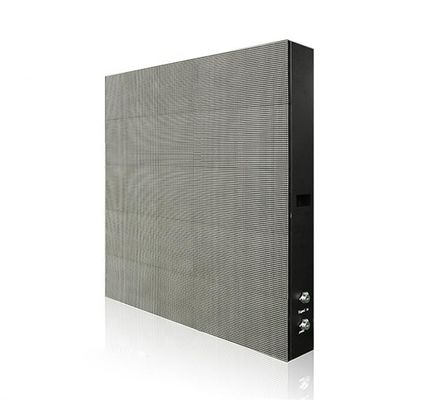

Cabinet Specification:
| Dimensions (WxH) | 960mm x960mm | Module Quantity | 18 |
| Physical Resolution(WxH) | 96 x 96 dots | Physical Pixels (Total) | 9216 |
| Weight/Cabinet | 50KG | Material | Iron/Aluminum |
LED Display Parameter
| Pixelpitch(mm) | P10 |
| LED Encapsulation | SMD3535 |
| Density(dot/m2) | 10000/sqm |
| Module size LxH mm | 320*160mm |
| Module Resolution | 32*16dot |
| Cabinet Size | 2240mm x 1440mm |
| Cabinet resolution | 224*144dot |
| Viewing Distance | 10-20m |
| viwe angle(H) - (V) | 140°- 140° |
| Brightness (cd/m²) | 6000 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/4scan |
| MTBF | ﹥100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP65/IP55 |
| Signal input format | Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Advantages
1.light weight: single person can be a single hand, saving installation time.
2.thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation.
3.Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic.
4.disassembly fast: 10s to complete a cabinet installation, high mounting accuracy.
Packing:
