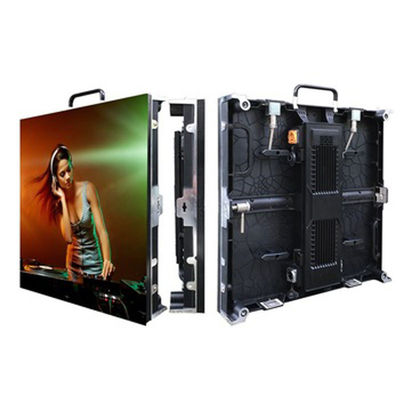

P1.875 Indoor Fixed LED Screen , 240x240mm LED Video Wall Display SMD1415
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 1.875mm | LED Type: | SMD1415 |
|---|---|---|---|
| Module Size: | 240*240mm | Cabinet Size: | Standard For 480*480mm |
| Power Consumption: | Max 200W /one Cabinet | Weight: | 8kgs/cabinet |
| Life Time: | ≥100,000 Hours | Brightness: | ≥1000mcd/square Meter |
| Driving Method: | 1/32 Scanning | Grey Scale: | 16bits |
| High Light: | P1.875 Indoor Fixed LED Screen,240x240mm LED Video Wall Display,SMD1415 LED Video Wall Display |
||
Product Description
P1.875 High Resolution Indoor LED Screen HD LED TV Solutions with 14bit Gray Grade
Display Labs company is a globally leading LED advertising display supplier based in Shenzhen, China. From outdoor
to indoor, we are provide P10RGB, P8, P6, P5 P4, P3, P2.5, P2, P1.875 etc pixel pitch LEDs. For indoor LED Wall, since
the limited viewing distance and video program required, P1.875 and P2RGB LED Module would be the perfect solution.
With several pcs cabinet, they can be joint into different size LED Screens to meet different requirements.
Features:
1: Light weight and slim aluminum cabinet, convenient for assemble and disconnect.
2: High brightness for indoor use, long life time LED
3: DIY Size, cabinet with standard 512*512mm, several pcs can joint into one LED Display.
4: Vivid content showing, wireless transmission.
5: 2years warranty and lifetime technical support.
Product Specs:
| Model: | P1.875 RGB Indoor LED Screen |
| Pixel Pitch: | 1.875mm |
| Pixel Density: | 284,444dots/square meter |
| Module Size: | 240*240mm |
| Cabinet Size: | 480*480mm |
| Cabinet Resolution: | 256 * 256=65536dots/cabinet |
| Cabinet weight: | 8kgs/cabinet |
| Best Viewing distance: | 2 - 30m |
| Program Mode: | Standard Ethernet, WIFI |
| Video input(w/video processor): | DVI, HDMI, PAL/NTSC/SECAM;S-Video;VGA;Composite etc. |
| Transmission distance: | Sychronous system: Basic internet cable ＜100m, Asychronous System: <300m, ( Fiber Optional) |
| Input power frequency: | 50/60HZ |
| Input voltage (AC): | 220~240V/AC(±10%) or 110V /AC |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
FAQ:
A1: If I bought 12pcs LED Display Cabinets, the first time is 3*4pcs, can i used it as 2*6pcs?
Q1: Yeah, the Aluminum LED Display can be DIY size according to your requirements. After your assebling, just
need to do the connection and setting in softwre.
A2: Is the brightness adjustable for LED Adverting video wall? And how to adjust it?
Q2: All DL LED screen is with adjustable brightness. It can be adjusted by manual in software, and if installed
brightness sensor in production, the sensor will detect the environment and adjust brightness automatically.
A3: How to make installation for LED Screen?
Q3: If the LED Screen is installed on the wall, first you have to build one steel structure for connect cabinet use.
After instaled the cabinet, put the module to each cabinet with magnet, try to keep the flatness. And do the cable
connection once finished. After that, connect power.
