P3 576x576mm Indoor Fixed LED Screen With Kystar Video Wall
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P3RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | P3RGB LED Screen | Pixel Pitch: | 3mm |
|---|---|---|---|
| LED Type: | SMD2121 | Module Size: | 192*192mm |
| Scan Mode: | 1/32 Scanning | Brightness: | 1200mcd/square Meter |
| Screen Dimension: | Customized Size | Usage: | Wedding, Rental, Stage, Conference Room |
| Life Span Time: | ≥100000hours | Warranty: | 2years |
| High Light: | 576x576mm Indoor Fixed LED Screen,P3 Indoor Fixed LED Screen,Kystar Video Wall p3 indoor led screen |
||
Product Description

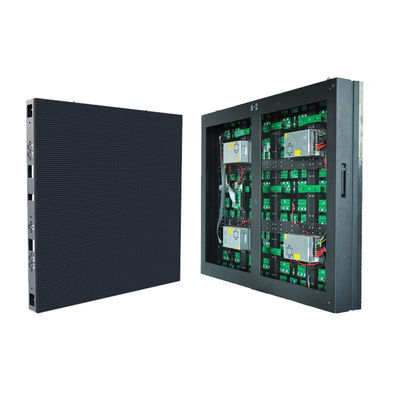

P3RGB LED Screen 576x 576mm aluminum cabinet works together with Kystar Video wall
Standard cabinet size for P3 LED Screen is 576*576mm, it could be customized according to requirements.
The stage LED is real time showing, come with video processor to make sure vivid video showing. The lock
design cabinet, makes installation getting easy.
Features:
1: High Refresh Rate with video processor to display vivid content, support real time and asynchronize showing.
2: Cabinet Size: 576*576mm with 9cm thickness, accept customized size.
3: Long life time LED with 2years warranty and whole life technical support
4: Front maintenance cabinet with magnet design, easy and fast to repair module.
OEM Service:
1: Pixels Pitch: P1.6/ P1.875/ P2/ P2.5/ P3/ P3.91/ P4/ P4.81/ P5/ P6/ P6.25/ P6.66/ P7.62/ P8/ P10
2: LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts /
10x6mts etc
3: LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm /
960mmx960mm / 1024mmx1024mm etc
4: LED Control System: Novastar / Linsn / Colorlight / DBstar / Lumen / Listen / Onbon / TF / HD Card etc
5: LED Power supply: Meanwell / CZCL / G-energy etc
6: LED Chips: Cree / Nichia / Epistar / Opto / Silan etc
7: Drive IC: MBI5024 / MBI5026 / MBI5027 / MBI5030 / MBI5031 / MBI5035 / MBI5040 / MBI5041 / MBI5042 /
MBI5050 / MBI5153 etc
Product Specs:
| Pixel Pitch: | 3mm |
| Pixel Density: | 111,111dots/㎡ |
| Module Size: | 192*192mm |
| Cabinet Size: | 576*576 mm, can be custmized according to project size |
| Scanning Mode: | 1/32 scanning |
| Refresh Rate: | 1920 / 3840 |
| Cabinet Material: | Aluminum / steel |
| Brightness: | ≥1200mcd/square meter |
| Grey scale: | 16bits |
| IP Level: | IP30 |
| Power consumption: | Avg: 500W/square meter |
| Life time: | ≥100,000 Hours |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Interface: | Standard Ethernet |
| Input voltage (AC): | 220~240V/AC(±10%) or 110V /AC |
FAQ:
Q1: Can i use P3RGB LED Screen for outdoor concert?
A1: The above item P3 RGB indoor LED video wall is not waterproof, and with soft brightness 1200mcd/square meter.
It can be used in indoor, and semi outdoor, not for waterproof and sunshine daytime.
Q2: How many pixel Pitch do you have for LED Module display?
A2: From indoor to outdoor, we can provide P1.6/ P1.875/ P2/ P2.5/ P3/ P3.91/ P4/ P4.81/ P5/ P6/ P6.25/ P6.66/ P7.62/
P8/ P10 RGB LED Module signs.
Q3: What's the control system, which controller will you use for indoor fixed led screen?
A3: It depends on client's requirements. If small size, we will use TF Card and HD card. And video showing, we shall use
HD Controller, novastar controller, with video processor if need.
Pre-sale service:
1. Fast Response time in 24 hours.
2. Professional suggestion based on client’s requirements.
3. Provide quotation sheet with product specs.
4: Data sheet and samples offer.
5. Expand service to solve customers doubt, assist to provide installation drawing, design packing
In-sale service:
1. In time update during production.
2. Quality test report for every order.
3. Photos and videos provided.
4. Free spare parts.
After-sale service:
1. 2years warranty, Lifetime free technical support and upgrade.
2: Free technician training
3. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
