P5 Front Service LED Screen With POE Wifi / 4G Control System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE, ROHS, FCC, UL, PSE |
| Model Number: | P5RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden Package |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Material: | Steel | Pixel Pitch: | 5mm |
|---|---|---|---|
| Color: | RGB Color | Application: | Outside |
| Input Voltage: | 110V - 220V | Brightness: | 6000mcd/square Meter |
| Working Life: | ＞100000 Hours | Warranty: | 2 Years |
| Power: | MEANWELL | Lamp: | SMD3535 |
| High Light: | P5 Front Service LED Screen,POE Wifi Front Service LED Screen,POE Wifi front maintenance led display |
||
Product Description
Outdoor Front Service P5 LED Display Screen With POE Wifi Or 4G Control System

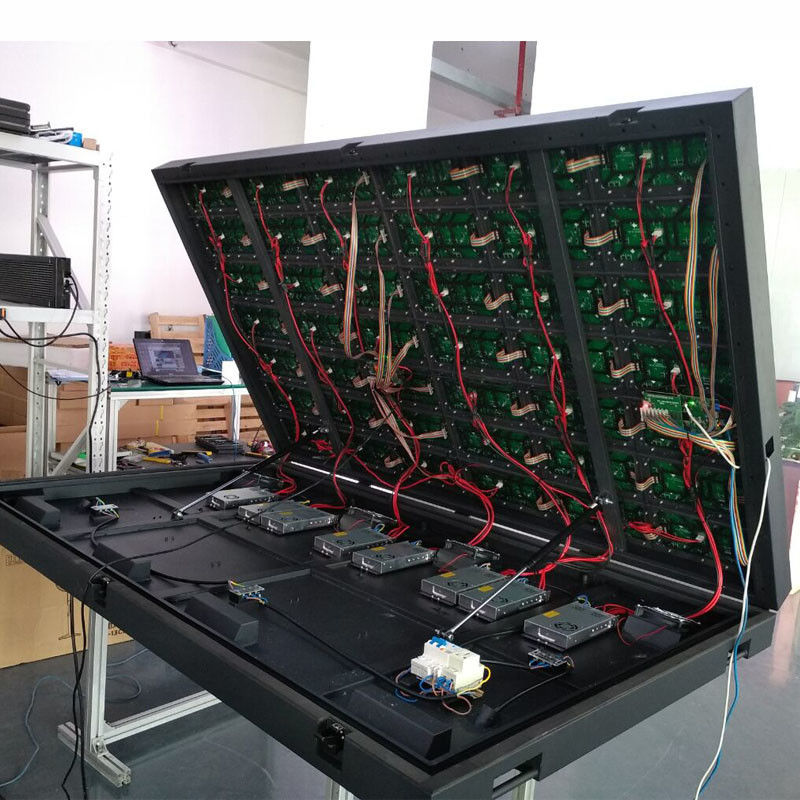

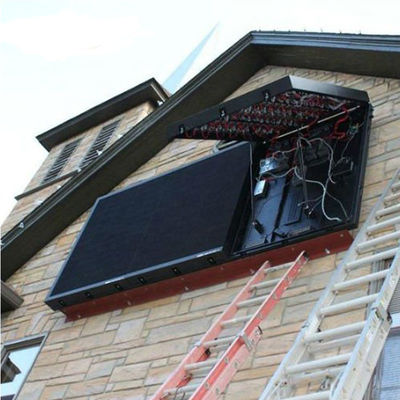

Front LED displays are easier to work with especially for maintenance people as these are designed to open like a lid (flip type). When the front maintenance LED display cabinet is opened, all components inside like LED cards, power and internet cables, control cards, gas springs etc. can be easily removed or changed.
Features
- Electronic Digital signs have been found to increase retail brand awareness by nearly 90% when compared to traditional signs
- Digital signs fulfill many roles-whether your goal is to attract new customers off the street or provide up-to-date, in-store product information
- LED Digital signs make retail spaces feel more modern and inviting
- Digital signs pay for themselves (and then some)
- Among retailers with freshly installed Digital signs, a vast majority of new customers consider those signs to be their main reason for visiting.
- The U.S. Small Business Association has endorsed programmable digital business signs content as the most profitable form of paid advertising in terms of return on investment.
- Support for different language: English, French, Portuguese, Spanish, Arabic, Russian, Chinese.
- Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
Product Specs:
| Pixel pitch (mm) | P5 |
| LED Encapsulation | SMD3535 |
| Density(dot/m2) | 40000/sqm |
| Module size LxH mm | 320*160mm |
| Module Resolution | 64*32dot |
| Viewing Distance | 5-10m |
| viwe angle(H) - (V) | 140°- 140° |
| Brightness (cd/m²) | 6000 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Pixel Configuration | SMD 3 in 1 |
| scan mode | 1/8scan |
| Available colors: | RGB full color |
| Viewing Angle: | 140 degree / 60 degree |
| Average LED life: | 100,000hrs |
| Contrast Enhancemen: | Black aluminum through hole faced panel |
| Power: | AC110~220V |
| Dimming: | Automatic or manual control |
| Cabinet Construction: | Aluminum |
| Serviceability: | Front service |
| Waterproof grade: | IP65 |
| Warranty: | 2 years |
| Operating Temperature : | -20°F~140°F |
| Communication option: | Network cable or POE wireless |
FAQ:
1: How to install the window led display signs? Do you provide hanging accessories?
All our LED Signs will be provided full set of hanging parts with 2pcs hanger, 2pcs L-Shape plate, which make you easier to make installation.
2: How many days to make one P10 led module display?
It would depend on size and quantity, normally 3-5days for sample order. 2-3weeks for quantities and big size led display screen
3: Does the LED scrolling sign will come with software? How to program it?
All DL LED moving sign will be offered software. It can be programmed via USB and WIFI.
