Electronic 32x16dot Front Maintenance LED Screen MEANWELL power

Electronic 32x16dot Front Maintenance LED Screen MEANWELL power

Product Details:

Place of Origin: CHINA
Brand Name: DL
Certification: CE, ROHS, FCC, UL, PSE
Model Number: P10RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: thick foam+hard carton+wooden box
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, Credit Card, Visa
Supply Ability: 500pcs/month
Get Best Price Contact Now

Detail Information

Material: Steel Pixel Pitch: 10mm
Color: Full Color Application: Outside
Input Voltage: 110V - 220V Brightness: 6000mcd/square Meter
Support: Win8/Winxp/ Win7/ W10 Working Life: >100000 Hours
Warranty: 2 Years Power: MEANWELL
High Light:

32x16dot Front Maintenance LED Screen


MEANWELL Power Front Maintenance LED Screen


MEANWELL Front Maintenance LED Screen

Product Description

Outdoor Waterproof LED Screen With Front Open Cabinet For Easy Maintenance After Sale

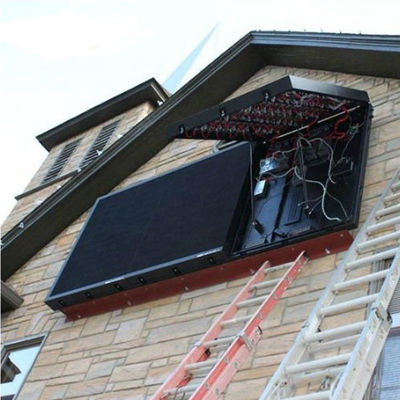

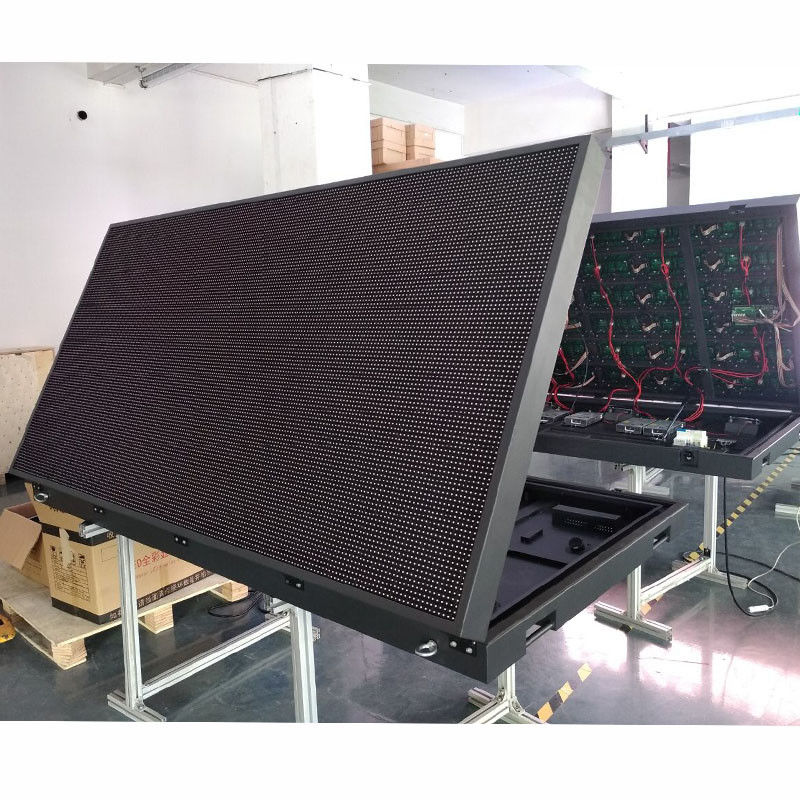

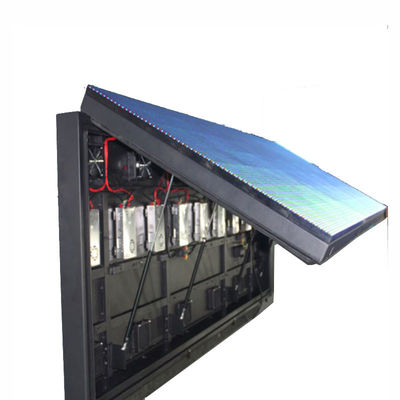

Font open cabinets are designed in two parts. The back side of the cabinet can be attached to the wall or any structure, while the front part can be lift up easily for service. This type of LED cabinet is suitable for any case without space in the back side of the cabinet like wall installation or installation on structure. Double-side led screen with no space between the two sides are another application of open front cabinets.

  • Electronic Digital signs have been found to increase retail brand awareness by nearly 90% when compared to traditional signs
  • Digital signs fulfill many roles-whether your goal is to attract new customers off the street or provide up-to-date, in-store product information
  • LED Digital signs make retail spaces feel more modern and inviting
  • Digital signs pay for themselves (and then some)
  • Among retailers with freshly installed Digital signs, a vast majority of new customers consider those signs to be their main reason for visiting.
  • The U.S. Small Business Association has endorsed programmable digital business signs content as the most profitable form of paid advertising in terms of return on investment.
  • Support for different language: English, French, Portuguese, Spanish, Arabic, Russian, Chinese.
  • Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.

Product Specs:

Pixel pitch (mm)P10
LED EncapsulationSMD3535
Module size LxH mm320*160mm
Module Resolution32*16dot
Viewing Distance10-20m
viwe angle(H) - (V)140°- 140°
Brightness (cd/m²)6000
average consumption m²550w
Max consumption m²1100w
Pixel ConfigurationSMD 3 in 1
scan mode1/4scan
Available colors:RGB full color
Viewing Angle:140 degree / 60 degree
Average LED life:100,000hrs
Contrast Enhancemen:Black aluminum through hole faced panel
Dimming:Automatic or manual control
Cabinet Construction:Aluminum
Serviceability:Front service
Waterproof grade:IP65
Warranty:2 years
Operating Temperature :-20°F~140°F
Communication option:Network cable or POE wireless

Electronic 32x16dot Front Maintenance LED Screen MEANWELL power 0
 Electronic 32x16dot Front Maintenance LED Screen MEANWELL power 1
Electronic 32x16dot Front Maintenance LED Screen MEANWELL power 2
Electronic 32x16dot Front Maintenance LED Screen MEANWELL power 3
1: How to install the window led display signs? Do you provide hanging accessories?
All our LED Signs will be provided full set of hanging parts with 2pcs hanger, 2pcs L-Shape plate, which make you easier to make installation.
2: How many days to make one P10 led module display?
It would depend on size and quantity, normally 3-5days for sample order. 2-3weeks for quantities and big size led display screen
3: Does the LED scrolling sign will come with software? How to program it?
All DL LED moving sign will be offered software. It can be programmed via USB and WIFI.
