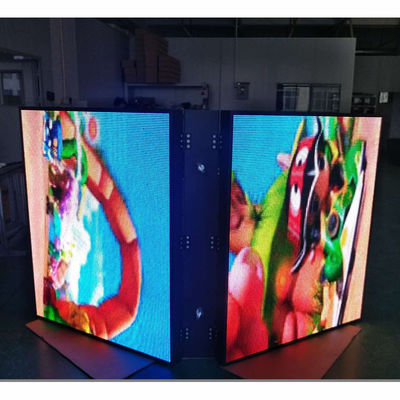

SMD3535 P10 Front Service LED Screen RGB Color Low Power Consumption
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE, ROHS, FCC, UL, PSE |
| Model Number: | P10RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | thick foam+hard carton+wooden box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Material: | Steel | Pixel Pitch: | 6mm |
|---|---|---|---|
| Color: | RGB Color | Application: | Outdoor Waterproof |
| Brightness: | 6000mcd/square Meter | Support: | Win8/Winxp/ Win7/ W10 |
| Working Life: | ＞100000 Hours | Warranty: | 1-2 Years |
| Lamp Type: | SMD3535 | Drive: | 1/4 Scan |
| High Light: | P10 Front Service LED Screen,SMD3535 Front Service LED Screen,SMD3535 front service led display |
||
Product Description
High Brightness With Super Low Power Consumption Smart Structure Design And Long Time Proven Technology

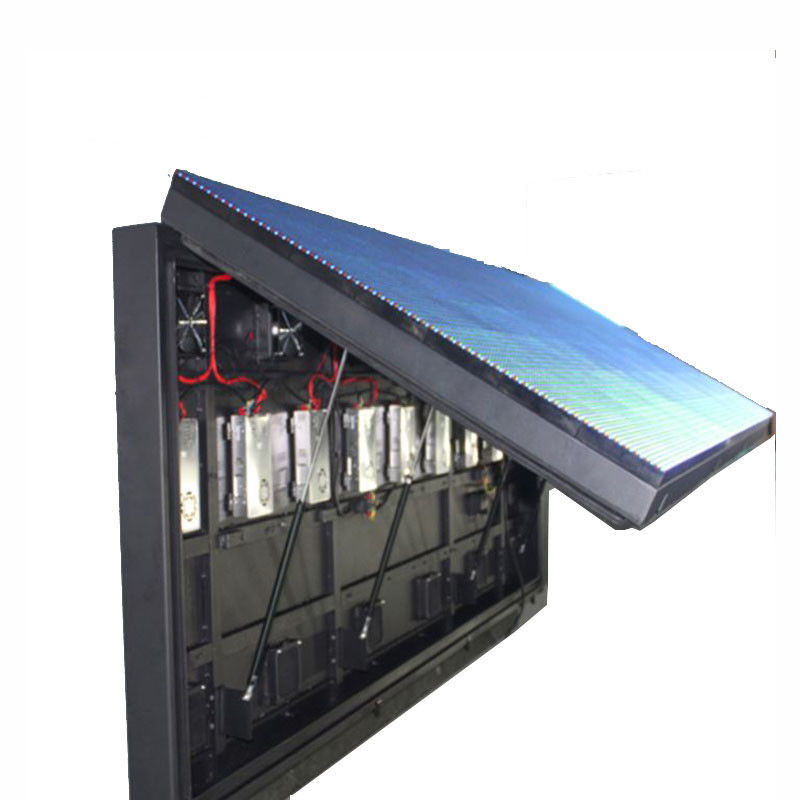

Front maintenace led display surface is strong and smooth, anti UV module suite, protect the screen body is not deformed. The core technology of the pre maintenance module, no maintenance channel, to deal with a variety of installation environment.
Features
- Digital signs fulfill many roles-whether your goal is to attract new customers off the street or provide up-to-date, in-store product information
- LED Digital signs make retail spaces feel more modern and inviting
- Digital signs pay for themselves (and then some)
- Among retailers with freshly installed Digital signs, a vast majority of new customers consider those signs to be their main reason for visiting.
- The U.S. Small Business Association has endorsed programmable digital business signs content as the most profitable form of paid advertising in terms of return on investment.Electronic product with poor power supply means a fire risk to some extent. DL LED Signboard use 5V UL certified Power supply only to provide durable quality, provide you a safety product without any risk.
Product Specs:
| Pixel pitch (mm) | P10 |
| LED Encapsulation | SMD3535 |
| Density(dot/m2) | 10000/sqm |
| Module size LxH mm | 320*160mm |
| Module Resolution | 32*16dot |
| Viewing Distance | 10-20m |
| viwe angle(H) - (V) | 140°- 140° |
| Brightness (cd/m²) | 6000 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Pixel Configuration | SMD 3 in 1 |
| scan mode | 1/4scan |
| Available colors: | RGB full color |
| Viewing Angle: | 140 degree / 60 degree |
| Average LED life: | 100,000hrs |
| Contrast Enhancemen: | Black aluminum through hole faced panel |
| Power: | AC110~220V |
| Dimming: | Automatic or manual control |
| Cabinet Construction: | Aluminum |
| Serviceability: | Front service |
| Waterproof grade: | IP65 |
| Warranty: | 2 years |
| Operating Temperature : | -20°F~140°F |
| Communication option: | Network cable or POE wireless |
Product Features:
[ Eye-catching Programmable LED Sign ] P10RGB LED Signs support text, time, pure color images / logo etc. With time on/off function, can be used as open sign. With WIFI and USB connection, you can change advertisement from Monday to Sunday, set different promotion message with different color red, blue, white or multi-color as you like. The sign board can show static message as well as moving text with snowing, flash effect etc.
[ Easy to Use Software and English instruction ] Are you envy the attracting led sign board from your competitors and still wait and see just due to the complicated setup for LED signs? DL LED display will help you to solve the hassle and provide fool-style operation software which would be friendly for those fresh men without too much computer knowledge. And the professional and fast-learning English version instruction will be provided to make sure effortless work to program our open sign.
[ UL certified power supply ] Electronic product with poor power supply means a fire risk to some extent. DL LED Signboard use 5V UL certified Power supply only to provide durable quality, provide you a safety product without any risk.
