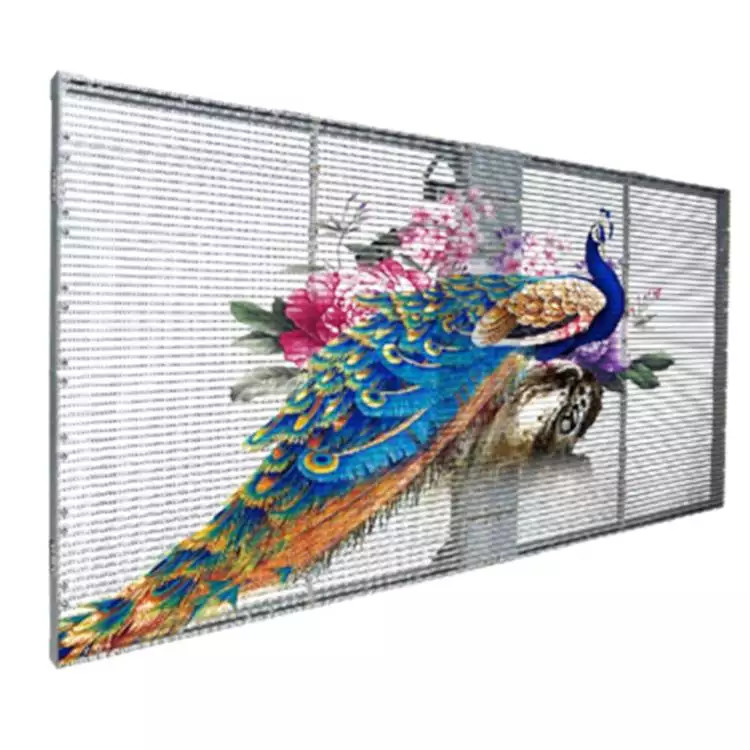

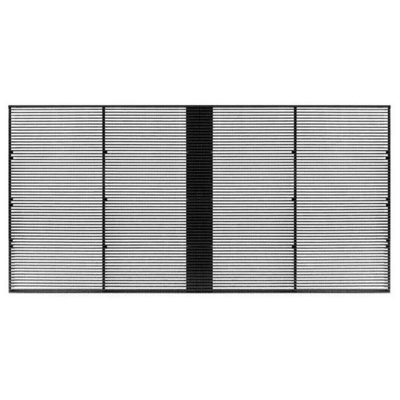

Outdoor P10.42 LED Transparent Display Screen 1000x500mm Aluminum Cabinet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE/Rohs/PSE |
| Model Number: | P10.42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | Transparent Glass Display | LED Model: | P10.42 |
|---|---|---|---|
| Pixel Pitch: | 10.42mm | LED Light: | SMD2727 |
| Transparency: | 50% | Brightness: | ≥4500nits/㎡ |
| Life Span: | ≥50000hours | Power Consumption: | Max:800W/㎡, Avg: 230W/㎡ |
| High Light: | SMD2727 Transparent Display Screen,1000x500mm Transparent Display Screen,P10.42mm LED Transparent Screen |
||
Product Description
P10.42 Outdoor LED Transparent Display Screen 1000*500mm Aluminum LED Cabinet
Features of Glass LED Display:
1: Standard panel size: standard cabinet size with 1000mm * 500mm, 1000mm*1000mm, and support customized
2: Slim, light and transparent cabinet design, perfectly combined with the on-site job.
3: High performance:high brightness up to 4500nit, and refresh rate go up to 3840HZ. With Matrix Displays, transparent LED display screen, is able to satisfy all sorts of high end applications
4: Widely Application: transparent LED display is widely applicable for various purposes.
Specs for Glass LED Video Wall:
| Product Name: | LED Glass Screen |
| Pixel Pitch (mm) | P10.42 |
| Led Type | SMD2727 |
| Cabinet Resolution (WxH) | 96x48 |
| Cabinet Size (mm) | 1000(W)x500(H) |
| Cabinet Area (m2) | 0.5 |
| Cabinet Weight (kg) | 7.5 |
| Pixel Density (dot/m2) | 9216 |
| Flatness (mm) | ≤0.2 |
| Maintenance | Front Maintenance |
| Material | Die casting |
| Transparency | 50% |
| Brightness Correction | Available |
| Color Correction | Available |
| Brightness (nits) | ≧4500 |
| Color Temperature (K) | 2000-10000adjustable |
| Viewing Angle (H/V°) | 160° |
| Center Point Deviation | ＜3% |
| Brightness/Color Uniformity | ≥97% |
| Max Power Consumption (W/m2) | 800 |
| Average Power Consumption (W/m2) | 230 |
| Voltage Range | AC100-240V, 50/60 (Hz) |
| Frame Rate (Hz) | |
| Drive Mode | Constant Current Drive, 1/2 scan |
| Gray Scale | 10 to 16 bit |
| Refresh Rate (Hz) | ≥1920 |
| Color Figures | 16bit |
| Power Failure Function | Save Luminance, Color Correction, Cabinet Parameters |
| Life Time (hrs) | 100,000 hrs |
|
Operating Temperature /Humidity Range (℃/RH) |
-10- 40/10%-80% (non-condensing) |
|
Storage Temperature /Humidity Range (℃/RH) |
-20- 60/10%-85% (non-condensing) |
