P5.2-10.4 Transparent Glass Screen , Outdoor Film Transparent Led Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE/Rohs/PSE |
| Model Number: | P5.2-10.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | Transparent Video Screen | Model: | P5.2-10.4 |
|---|---|---|---|
| Pixel Pitch: | W: 5.2mm, H: 10.4mm | Application: | Outdoor Waterproof |
| LED Light: | SMD1921 | Brightness: | ≥5500nits/㎡ |
| Cabinet Size: | 1000*500mm | Life Span: | ≥50000hours |
| High Light: | P5.2 Transparent Glass Screen,10.4mm Transparent Glass Screen,Frameless Transparent Glass Screen |
||
Product Description
Transparent Glass Screen P5.2-10.4 Outdoor LED Film Transparentent Led Screen
Features of Transparent Video Display:
1: Frame-less design, jointable for several pcs led cabinet: The frame-less design getting lighter and more transparent

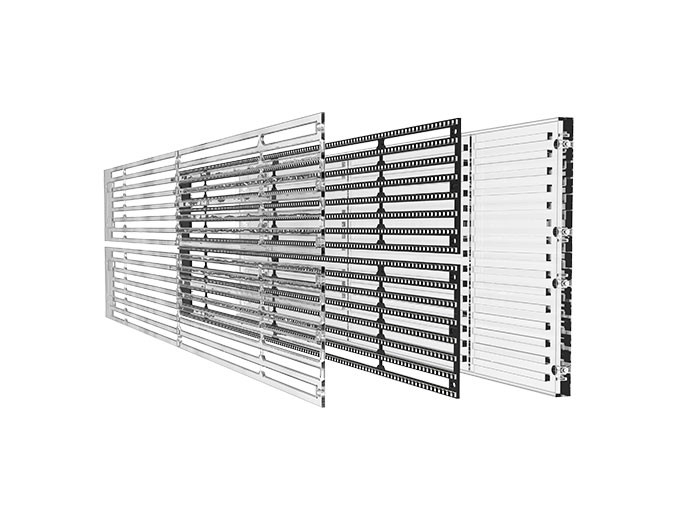

2: Simple and fast maintenance: Each module size is 500*125mm; simply loosing several screws, the modules will be removed quickly
3: Quick and easy installation: Modular box quick-release connection, and light weight
4: light weight, energy efficient and environmentally friendly
Specs for Outdoor Transparent Screen:
| Pixel Pitch (mm) | VP5.21-HP10.42 |
| Led Type | SMD1921 Nation Star LED |
| Cabinet Resolution (WxH) | 192x48 |
| Cabinet Size (mm) | 1000(W)x500(H) |
| Cabinet Area (m2) | 0.5 |
| Cabinet Weight (kg) | 7.5 |
| Pixel Density (dot/m2) | 18432 |
| Flatness (mm) | ≤0.2 |
| Maintenance | Front Maintenance |
| Material | Die casting |
| Transparency | 50% |
| Brightness Correction | Available |
| Color Correction | Available |
| Brightness (nits) | ≧5500 |
| Color Temperature (K) | 2000-10000adjustable |
| Viewing Angle (H/V°) | 160° |
| Center Point Deviation | ＜3% |
| Brightness/Color Uniformity | ≥97% |
| Power Consumption (W/m2) | Max: 800, Avg: 230W |
| Voltage Range | AC100-240V, 50/60 (Hz) |
| Frame Rate (Hz) | 50-60hz |
| Drive Mode | Constant Current Drive, 1/4 scan |
| Gray Scale | 10 to 16 bit |
| Refresh Rate (Hz) | ≥1920 |
| Color Figures | 16bit |
| Power Failure Function | Save Luminance, Color Correction, Cabinet Parameters |
| Life Time (hrs) | 100,000 hrs |
Want to Know more details about this product
