High Brightness Outdoor P3.9-7.8 LED Transparent Screen For Glass Wall Advertising
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Display Labs |
| Certification: | CE/Rohs/PSE |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | Transparent Video Wall | Model: | P3.9-7.8 |
|---|---|---|---|
| Pixel Pitch: | W:3.91MM, H: 7.8MM | Application: | Outdoor Waterproof |
| Brightness: | 5500nits/㎡ | LED Cabinet Size: | 500*1000mm |
| LED Light: | Nation Star SMD1921 | Driving IC: | ICN5123 |
| High Light: | P3.9 LED Transparent Screen,7.8MM LED Transparent Screen,PSE Certified Transparent LED Screen |
||
Product Description

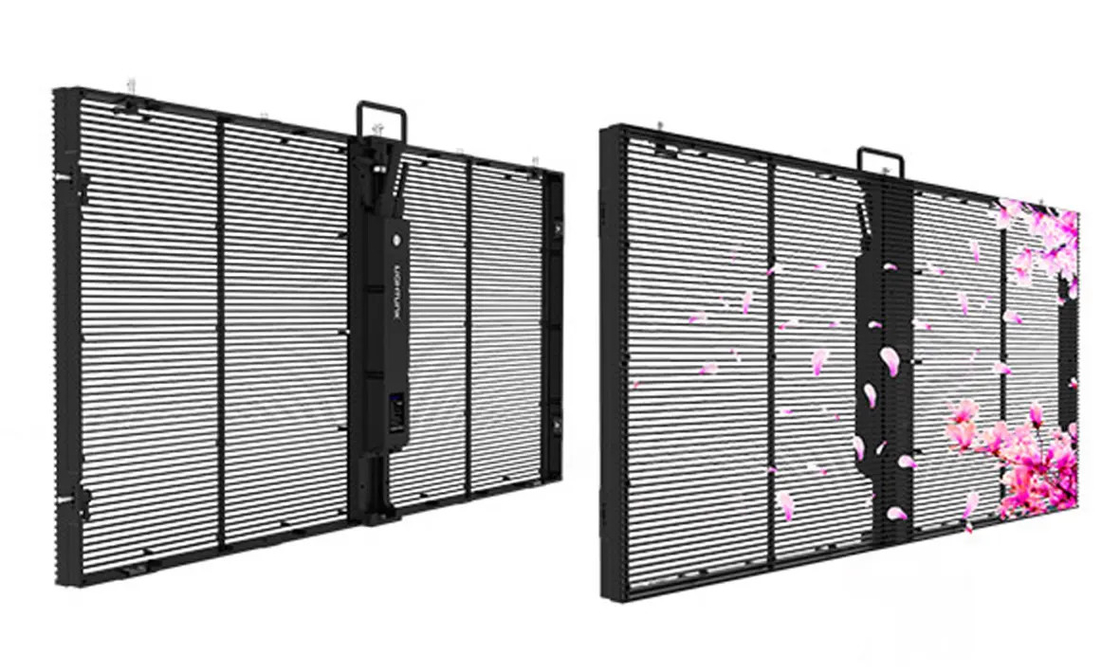

Outdoor High Brightness P3.9-7.8 LED Transparent Screen For Glass wall advertising
Features of Outdoor transparent screen:
1: High transparency and light weight compared with traditional LED Screen:50% transparency
2: High refresh rate: ≥3840HZ, providing a vivid viusal experience.
3: Customized size to make the most suitable glass wall.
4: Highly integrated light bar structure, high product stability
5: Simple operation and strong controllability
Specs for Transparent LED Wall:
| Pixel Pitch (mm) | P3.9-7.8 |
| Led Type | SMD1921 |
| Cabinet Resolution (WxH) | 128x64 |
| Cabinet Size (mm) | 1000(W)x500(H) |
| Pixel Density (dot/m2) | 32768 |
| Maintenance | Front Maintenance |
| Material | Die casting |
| Transparency | 50% |
| Brightness (nits) | ≧4500 |
| Color Temperature (K) | 2000-10000adjustable |
| Viewing Angle (H/V°) | 160° |
| Center Point Deviation | ＜3% |
| Brightness/Color Uniformity | ≥97% |
| Power Consumption (W/m2) | Max: 800, Avg: 200W |
| Voltage Range | AC100-240V, 50/60 (Hz) |
| Frame Rate (Hz) | 50-60HZ |
| Drive Mode | Constant Current Drive, 1/8 scan |
| Refresh Rate (Hz) | ≥1920 |
| Life Time (hrs) | 100,000 hrs |
