160*320mm Module P6 LED Monument Signs With Nova TB Sending System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500PCS/month |
|
Detail Information |
|||
| Pixel Pitch: | 6.67mm | Module Size: | 160*320MM |
|---|---|---|---|
| Cabinet Size: | 480*3000MM | Resolution: | 72*432dots |
| Application: | Outdoor Waterproof | Brightness: | ≥5000cd/㎡ |
| Input Voltage: | 110V/220V | Power Consumptin: | Max: 1500W Avg: 500W |
| High Light: | P6 LED Monument Signs,160*320mm LED Monument Signs,P6 Digital Monument Sign |
||
Product Description

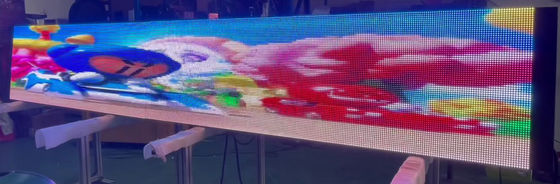

160*320mm Module P6 LED Monument Signs With Nova TB Sending System
Outdoor Waterproof LED Signs P6.67RGB 160*320MM LED Advertising display
P6.67 LED module is with same module size and holes as P10 LED Module, and with better resolution. Size is customized according to clients requirements, 480*2880MM. There are 60MM frame on each side, so final size for the display is 480*3000MM. Built in with Novastar TB2 sending box, programmed via cable and wifi with Viplex software.
Features:
1: Same module size as P10 LED Module: 160*320MM
2: Customized size LED Display: showing size 480*2880MM, frame size 480*3000MM
3: High brightness LED, long lifetime: SMD3535 LED, 5000mcd/square meter
4: Built in certified Meanwell Power supply
5: Built in Nova receiving card and sending box
6: Strong cabinet design and waterproof
7: PSE Certified
Specs:
| Model: | P6.67-3X9 |
| LED: | SMD3535 |
| Module Size: | 160*320MM |
| Input Voltage: | 110V/220V Switchable |
| Control system: | Nova TB4+ MRV336 |
| Power Supply: | Meanwell |
| Application: | Outdoor waterproof |
| Brightness: | ≥5000mcd/square meter |
| Best viewing angle: | 120° H/V |
| Best viewing distance: | 6-50m |
| Power consumption: | max 1500W, avg: 500W |
| Life time: | ≥100000hours |
| Installation: | L shape hanger to fix |
