SMD1515 Indoor Rental LED Screen Full Color CE ROHS FCC Certificate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/RoHS/FCC/PSE |
| Model Number: | 4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-3000/square meter |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 4.81mm | Color: | RGB Color |
|---|---|---|---|
| Module Size: | 500x500 | Resolution: | 128x128dots |
| Refresh Rate: | 3840Hz | LED Standard: | SMD1515 |
| Certificate: | CE ROHS FCC | Application: | Rental Display, Indoor |
| High Light: | SMD1515 Indoor Rental LED Screen,FCC Certificate Indoor Rental LED Screen,FCC Certificate led display rental |
||
Product Description
P3.91 Indoor Led Wall Sign Board Display Smd Full Color Rental Led Panels Screen Led Display
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board.
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) IV:(600-800mcd) |
G: WL:(520-524nm) IV:(1400-1800mcd) |
B:WL:(470-472nm) IV :(800-880mcd) |
 |
|||

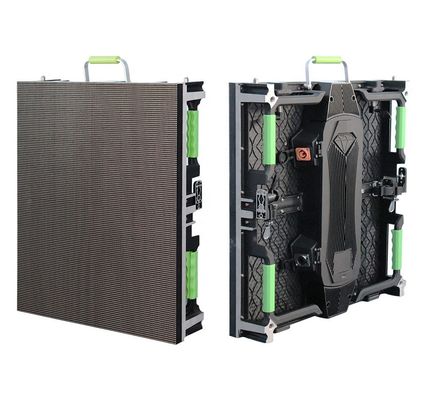

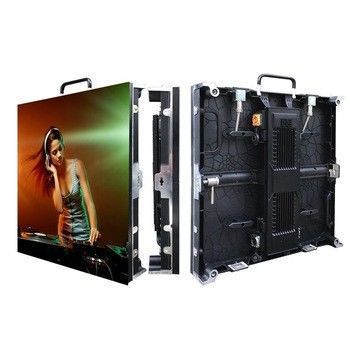

Cabinet Specification
| Dimensions (WxH) | 500mm x 00mm | Module Quantity | 4 |
| Physical Resolution(WxH) | 128 x 128 dots | Physical Pixels (Total) | 16384 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
| |
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*500mm |
| Cabinet resolution | 128*128dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Black light advantage: high contrast, no reflection, the picture is more colorful
As the fast developing of the economy, people concerns more on enriching their spiritual life, small TV and LCD can't meet their needs anymore. Many entertainments activities and events is organized everyday, such as DJ clubs, parties, concerts, conference meeting events. A big rental led display makes the whole activies and events shining with its uniform color vivid video effect, high brightness, broad viewing face and perspective, live broadcast available characteristics. MPLED focus on providing high quality indoor/outdoor rental led display from P3 to P10 for customers in media & entertainment industries, have done many successful projects all over the world.
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
