10 Point LCD Touch Screen 43 Inch With Slim Aluminum Cabinet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | 43inch-IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Thickfoam+carton |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500PCS/month |
|
Detail Information |
|||
| Case Material: | Aluminum Case + Steel Back Cover | Product Size: | 580.22*1790*28MM |
|---|---|---|---|
| Showing Size: | 940.2(H)*528.4(V)MM | Brightness: | 280~300cd/m2 |
| Contrast Ratio: | 1900-2-19 0:01:00 | Color: | 16.7M （True8bit） |
| Viewing Angle: | 89/89/89/89(L/R/U/D) | Resolution: | 1920*1080 |
| High Light: | Aluminum Cabinet 10 Point LCD Touch Screen,43 Inch 10 Point LCD Touch Screen,Aluminum Cabinet 43 inch touchscreen monitor |
||
Product Description

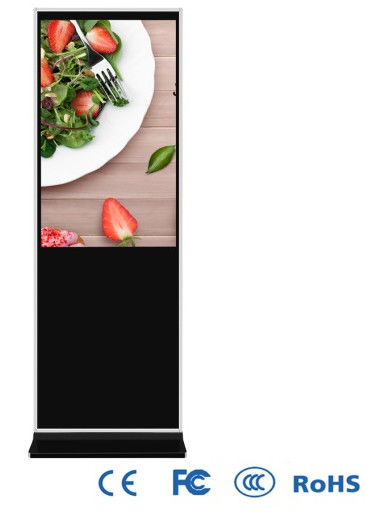

Infrared Touch Screen 43 Inch Android Advertising LCD Display With Slim Cabinet
The infrared touch screen LCD Display with infrared touchable glass, it's very popular in shopping mall,
restaurant, confrenece room etc. With network / platform to update picture and video. And toughened glass
on the surface to protect panel.
Product Specs:
| Product Name: | Infrared Touch Screen 43inch |
| Size: | 43inch |
| Product Size: | 580.22*1790*28MM |
| Showing size: | 940.2(H)*528.4(V)MM |
| Bottom Base Size: | 589.42*480*40MM |
| Case color: | Silver / black |
| Toughened Glass: | Included |
| Touch Screen: | Infrared Touch, 10point |
| Backlight type: | LED |
| Viewing angle: | V/H: 89° |
| Resolution: | 1920*1080 |
| Backlight Current and Voltage: | 75V/540mA(270mA*2) |
| Touch Type: | Infrared 10points |
| Light interference: | <10000Lux |
| Writing Type: | Pen, finger |
| Touch Acurracy: | ±(3mm) |
| Communication mode: | USB |
Parameters for main board:
1: CPU: RK3128, 4Cores, ARM-A7,1.3GHz
2: GPU: Mali-400MP2
3: Memory: DDR 1GB, EMMC 8G(16G/32G optional)
4: Android verision: Android 4.4.4
5: Decoded resolution 1080P
6: File format: RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4,
BMP,JPEG,PNG,GIF
7: Display Mode: support circulation, timing, inter-cut etc
8: Support internet: Ethernet, WIFI (BT),4G
Port Specs:
1: Power: 12V/DC input
2: LVDS: 2lines 8bits LVDS+Backlight port
3: EDP: 1920x1080 output
4: MIPI: 1 pc/ MIPI-DSI-20PIN-FPC
5: Saving card: TF Card
6: Serial Port: TTL port
