500*400mm LED Transparent Screen , Soft PCB LED Film Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P10-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | LED Type: | SMD1921 |
|---|---|---|---|
| Transparency: | 70% | Film Size: | 500*400mm |
| Thickness: | 2mm | Material: | Anti UV PET+AL |
| Brightness: | 6500 | Installation Type: | Paste |
| Viewing Angle: | H/V: 140° | Power Consumption: | Max: 400W/㎡, Avg: 120W/㎡ |
| High Light: | 500*400mm LED Transparent Screen,500*400mm LED Film Display,Soft PCB LED Film Display |
||
Product Description

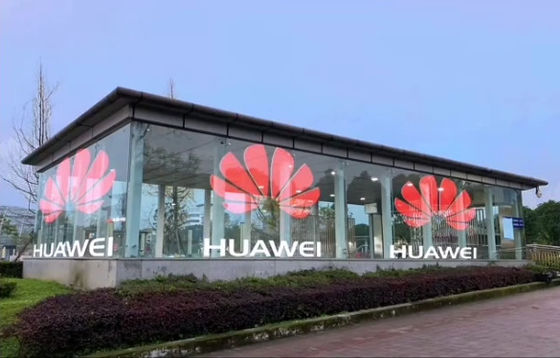

Transparent Film LED Panel Screen P10 Glass Window LED Screen With Soft PCB Technology

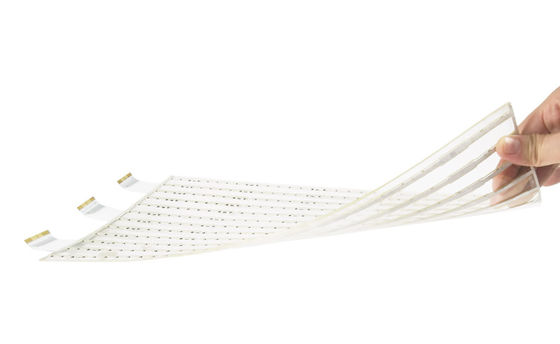

The transparent film LED Display is made by soft see-through anti-UV PET and a special self-adhensive material.
This super light and ultra-slim film screen combines seamlessly with glass surface when the display is off light.
The transparent glass led wall is easy to paste on any glass surface, tear off the plate and stick to glass without extra structure it will make your glass stunning and unique.
Features:
1: Soft PCB: Soft film LED Display has a soft body structure and FPC technology that can be customized for any shape of the LED Display installation.
2: High Brightness: The 6500nits brightness of soft film led screen can be applied into outdoor to catch customer's eyes.
3: Slim design: Soft LED is made of a anti-UV and durable PET film and is just 2mm thick.
4: Sitck installation, no frame: Without installation structures, film led display panel offers an easy-to-use plug and play functionality. It's thin and lightweight film structure can be easily pasted on to any glass surface
5: Cut freely: The LED Sign can be cut for any size according to requirements.
Product Specs:
| Product Name: | Transparent Film LED Screen |
| Pixel Pitch: | 10mm |
| LED Type: | SMD1921 |
| Transparency: | 70% |
| Film Size: | 500*400mm |
| Thickness: | 2mm |
| Material: | Anti UV PET & AL |
| Brightness: | 6500 |
| Installation: | Paste |
| View Angle: | ＞140° |
| Input Power: | AC 110-220V switchable by power supply |
| Grey Level: | 14Bit |
| Refresh Rate: | 3840HZ |
| Power Consumption: | Max: 400W/㎡, Avg: 120W/㎡ |
| Driving Type: | Static |
| Life time: | ≥100000hours |
| Operating Temperarture: | -10℃ ~ +40℃ |
| Storage Temperature: | -20℃ ~ +60℃ |
