1R1G1B Transparent LED Film Display , 4000mcd LED Curtain Wall Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P4-8RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Model: | P4-8RGB | Pixel Pitch: | H: 4mm, V: 8mm |
|---|---|---|---|
| Pixel Density: | 31250dots/㎡ | LED Type: | SMD2121 1R1G1B |
| Weight: | 3.5kgs/cabinet | Brightness: | ≥4000mcd |
| Viewing Angle: | H: 150°, V: 150° | Input Voltage: | AC85-250V |
| Life Span: | ≥100000hours | Refresh Rate: | 3840HZ |
| High Light: | 1R1G1B Transparent LED Film Display,4000mcd Transparent LED Film Display,4000mcd LED Curtain Wall Display |
||
Product Description
Transparent LED Film screen P4-8 LED Glass Curtain Wall for shoppin Mall
Transparent LED Film screen is a high-end product that breaks the conventional LED display. The parts on transparent PCB boards is using specific bare chips. The soft PCB makes it's possibe to assemble different shapes like curve LED. And compared with the 1st generation transparent LED, the film LED Screen is with more convenient installation way to stick on the wall.
Features:
1: Invisible driver chip, high transparency. The illuminating chip adopts a micron-level illuminating technology, and is protected by a transparent, hihg- temperature resistant, anti-static waterproof film. The driver chip is not visible to naked eye.
2: Ultra thin, ultra light: 1-3mm thickness only for file transparent LED and 1-3.5kgs per one square meter only.
3: Anti Fall, Anti-collision: The LED Screen is made of FPC flexible material to prevent internal components from
falling, and the sqare meter can stand external impact pressure 2kgs.
4: Customized size: Depending on the glass size of the desired film, it can be cut to the required length.
5: High Permeability: The film screen light source mounted on the glass can reach up to 86% permeability.
Product Specs:
| Product Name: | Transparent LED Film screen |
| Model: | P4-8 |
| Pixel Density: | 31250dots/square meter |
| Pixel Distance: | H: 4mm, V: 8mm |
| Cabinet Size: | Customized |
| Dots per cabinet: | 8000 |
| Weight: | 3.5kgs/cabinet |
| Thickness: | 72mm (thickest area to install power supply) |
| Power consumption: | Max: 800W/㎡, Avg: 300W/㎡ |
| Brightness: | ≥4000cd/㎡ |
| Viewing Angle: | Horizental: ≥150°, Vertical: ≥150° |
| Best Viewing Distance: | 6-500m |
| Refresh: | 3840 |
| Life Span: | ≥100000hours |
| Installation Type: | Screw, sticker |
Installation:

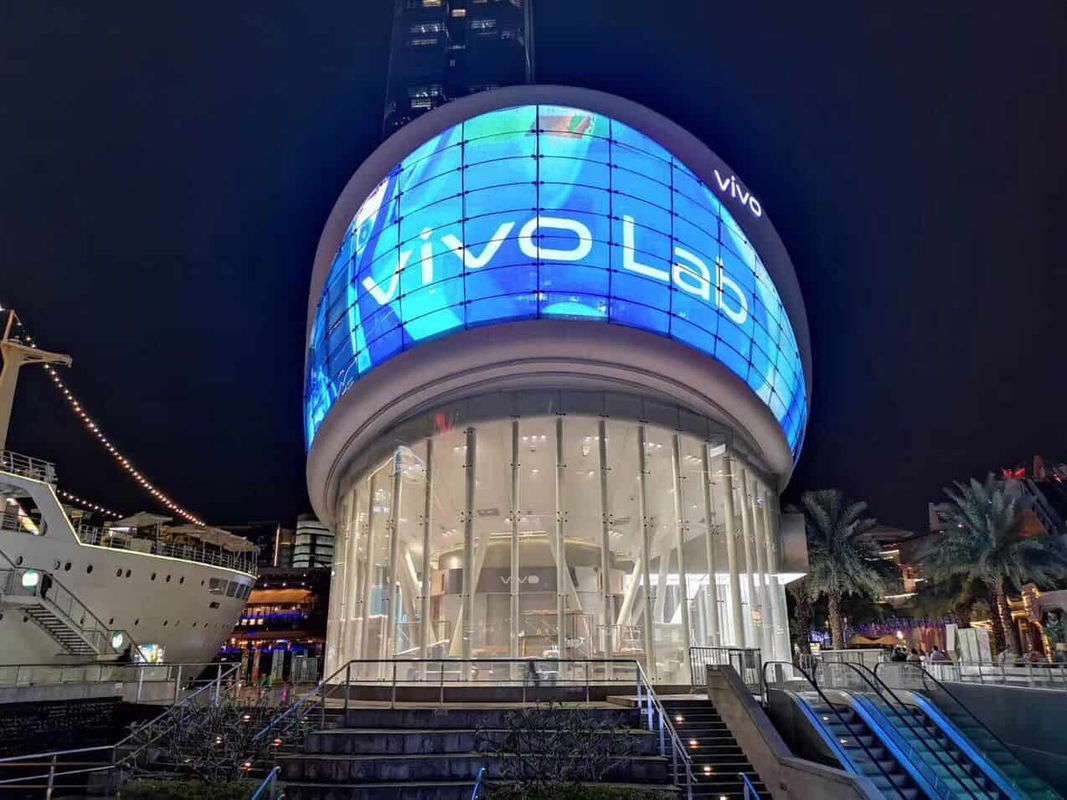

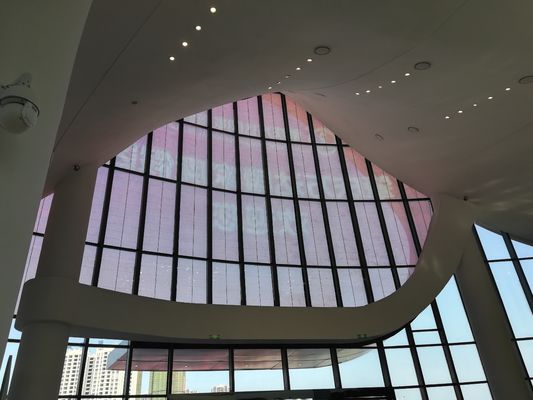

Case:
