1920Hz Outdoor Rental LED Screen , waterproof LED Panel P3
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/RoHS/FCC/PSE |
| Model Number: | 3.91 / 4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-3000/square meter |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Product Name: | P3 P3.91 P4 P4.81 P5 P6 | Pixel Pitch: | 3mm 3.91mm 4mm 4.81mm 5mm 6mm |
|---|---|---|---|
| Refresh Rate: | 1920-3840Hz | Life Span: | ≥100000 Hours |
| Screen Dimension: | Customized Size | Usage: | OUTDOOR |
| Certificate: | CE ROHS FCC | ||
| High Light: | 1920Hz Outdoor Rental LED Screen,Waterproof 1920Hz Outdoor Rental LED Screen,Waterproof LED Panel P3 |
||
Product Description
P3.91 Indoor and outdoor rental led display Screen P3 P4 P3.91 P4.81 outdoor waterproof p3 led screen panel
Features:
1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
2.It delivers an image which is super subtle and without getting tired after a longtime watching
3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
4.Front Serviceable Module allows easy Maintenance, Saving Time & Space
5.16 Bit Grey Grade Processing, the color transition will be more natural
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R WL(620-625NM) |
G: WL:(520-524nm) |
B:WL:(470-472nm) |
 |
|||
Cabinet Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
| |
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
Ultra lightweight, Slim design
500*500mm standard cabinet size
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.For easy transport and Portable;
Dual Service Design
Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design.
easy installation for LED panels.

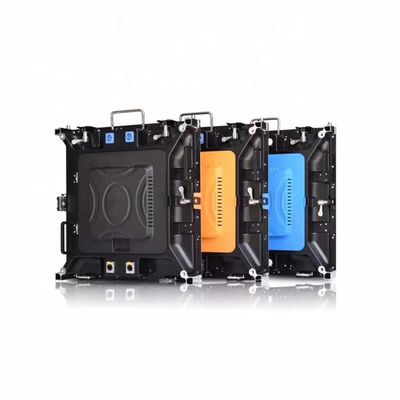

Perfect Cabinet Design With Each Part
Rental LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob,Power& signal connector, detachable power boxing, and more
Detachable Back Cover, High Waterproof
Hard Connection Design with detachable Power box and HUB Board,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assemble and disassemble of back cover
Corner Protector for LED
Front service LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
