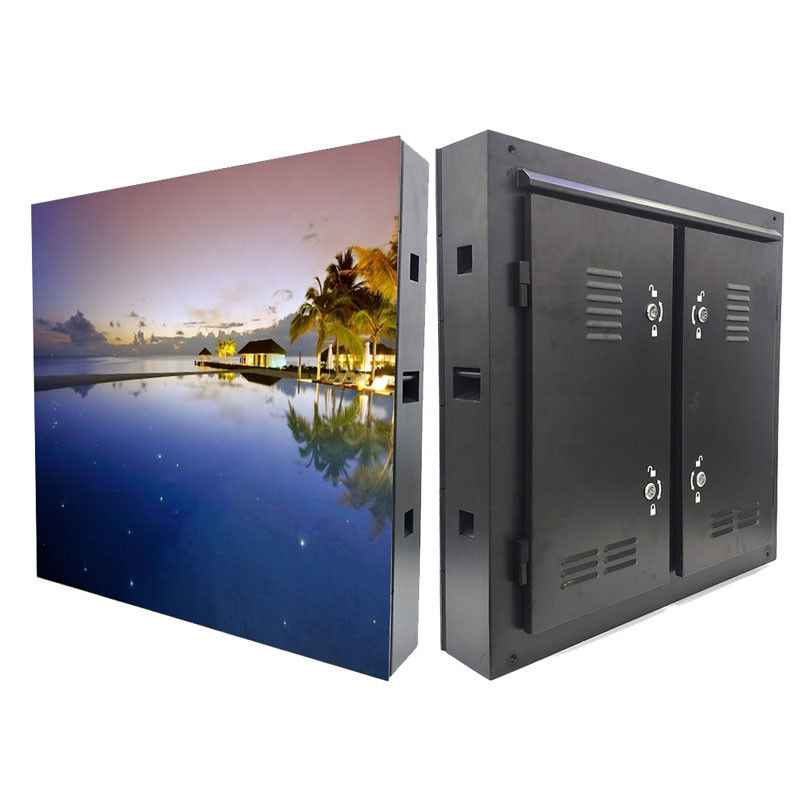

Waterproof SMD 3535 Outdoor Led Display Signs P8 6000mcd High Brightness
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P8RGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 100square meters/month |
|
Detail Information |
|||
| Pixel Pitch: | P8RGB | Pixel Density: | 15625dots/square Meter |
|---|---|---|---|
| LED Type: | SMD3535 | Module Size: | 160*320mm |
| Standard Cabinet Size: | 960*960mm | Driving Mode: | 1/4 Scan |
| Brightness: | 6000mcd/square Meter | Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Transmission Distance: | Sychronous System: Basic Internet Cable ＜100m, Asychronous System: <300m, ( Fiber Optional) | Input Power Frequency: | 50/ 60Hz |
| High Light: | SMD 3535 Outdoor Led Display Signs,P8 Outdoor Led Display Signs,6000mcd waterproof led signs |
||
Product Description
SMD 3535 P8 RGB Outdoor display signs LED Screen with high brightness IP65 waterproof
Standard P8RGB module size would be 128*256mm, and ours is 160*320mm, it would be same size as P10RGB LED
Screen and with better resolution. SMD3535 LED with high brigtness, makes the LED Display is visable in daytime and
100m distance. With fast installation design, programmable software, the billboard led screen is widly used in advertising,
sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Features:
1: Module size 160*320mm, same as P10 LED module.
2: Steel cabinet with back door, IP65 Waterproof LED Dispay.
3: SMD3535 LED, high brightness up to 6000mcd/square meter
4: Standard cabinet size is 960*960mm, Customized size is welcomed.
5: Manual adjustable brightness (optional for automatically adjust with brightness sensor)
6: 2 year limited warranty and lifetime technical support
7: Standard cabinet size 960*960mm, acceptable for customized size.
Product Specs:
| Pixel Pitch: | 8mm |
| Pixel Density: | 15625dots/square meter |
| Module Size: | 160*320mm |
| Cabinet Size: | 960*960mm |
| Cabinet Resolution: | 120*120=14400dots |
| Scanning Mode: | 1/5 Scanning |
| Weight: | 45KG/Cabinet (lighter for aluminum cabinet) |
| IP Grade: | IP65 |
| Power consumption: | Avg.:600W/㎡ |
| Operating Environment: | Temperature: -10°C～60°C; Humidity: 10%～90% |
| Video input(w/video processor): | DVI, HDMI, PAL/NTSC/SECAM;S-Video;VGA;Composite etc. |
| Input voltage (AC): | 220~240V/AC(±10%) or 110V /AC |
| Transmission distance: | Sychronous system: Basic internet cable ＜100m, Asychronous System: <300m, ( Fiber Optional) |
| Input power frequency: | 50/ 60Hz |
FAQ:
Q1: What's the difference for P8 128*256 modules and 160*320 led module?
A1: 128*256 and 160*320 P8 LED module display, they are same, just difference in size. They will be used in
different requirements. If display size is the times for 160*320modules, then we will use this model, or it would
be the normal 128*256 P8 LED.
Q2: What kind of video format can be shown? Can it support real time showing?
A2: The outdoor scrolling led sign can support regular format video like MP4, AVI, WMV etc. Normally it's asynchronize
program, it's optional for sychronize content (real time showing), please contact us before production.
Q3: How far for the control distance for WIFI?
A3: DL outdoor led display panels is with POE WIFI router, which would provide you long transmission distance than
normal led, up to 200m in empty area.
Q4: Any after-sale service for your Outdoor LED Screen?
A4: We have a strong customer service team, provide you 7x24hours support.
For software problem, we will assist you by remote like teamviewer, anydesk.
If firmware problem, shall send you video to do repairing.
