Side Lighting P3.91-7.8 Transparent LED Screen With High Brightness See Through Led For Glass Entrance
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DL |
| Certification: | CE/Rohs/PSE |
| Model Number: | P3.91-7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box / flight box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability: | 500PCS/month |
|
Detail Information |
|||
| Product Name: | Glass LED Screen | Pixel Pitch: | 3.91mm In Width, 7.8mm In Height |
|---|---|---|---|
| LED Brand: | National Star LED | Brightness: | 5000mcd/square Meter |
| Cabinet Size: | 500*1000mm | Customized: | Supported |
| Best Viewing Distance: | 4~12m | Input Voltage: | 110V-220V |
| High Light: | P7.8 Transparent LED Screen,P3.91 Transparent LED Screen,P3.91 LED Transparent Display |
||
Product Description
Side Lighting P3.91-7.8 Transparent LED Screen With High Brightness See Through Led For Glass Entrance

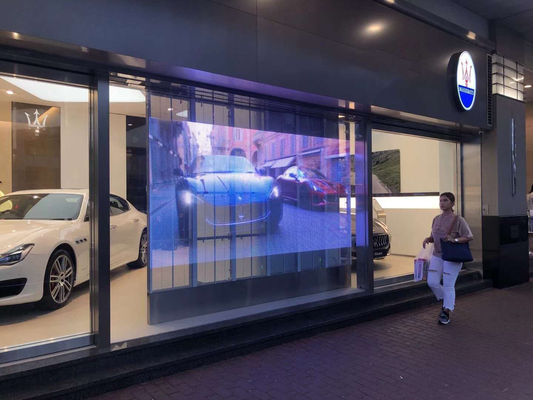

Transparent LED Screen, we have front lighting and side lighting both for P3.91-7.8MM LED Display. All of them with high transparency which makes them perfect to be installed for glass wall, glass door for shopping center, bank, hospital application etc.
Features of Side lighting Transparent LED Wall
1: Slim cabinet, one port for power box: it would be easier to make installation
2: Customzied size: Different as front lighting led film display, side lighting could be customized to close your target size
3: High brightness: 5000mcd/㎡, it's visiable under sunshine
4: Wireless transmission for video
5: Long life time: National star LED and MBI IC
Specs of Transparent LED Display
|
Pixel pitch: |
W3.91mm*H7.81mm |
| Lighting Type: | Side lighting |
|
Best viewing distance(M): |
4M-12M |
|
Transparency: |
80% |
|
Pixel density/㎡: |
32768 |
|
Max consumption/㎡: |
800W |
|
Average power /㎡: |
340W |
|
Cabinet size(mm): |
W1000mm*H500mm*D50mm |
|
Cabinet resolution: |
256*64 |
|
Driving mode: |
1/8 |
|
Cabinet weight(KG): |
5kg |
|
Brightness(nits) |
5000CD/㎡ |
